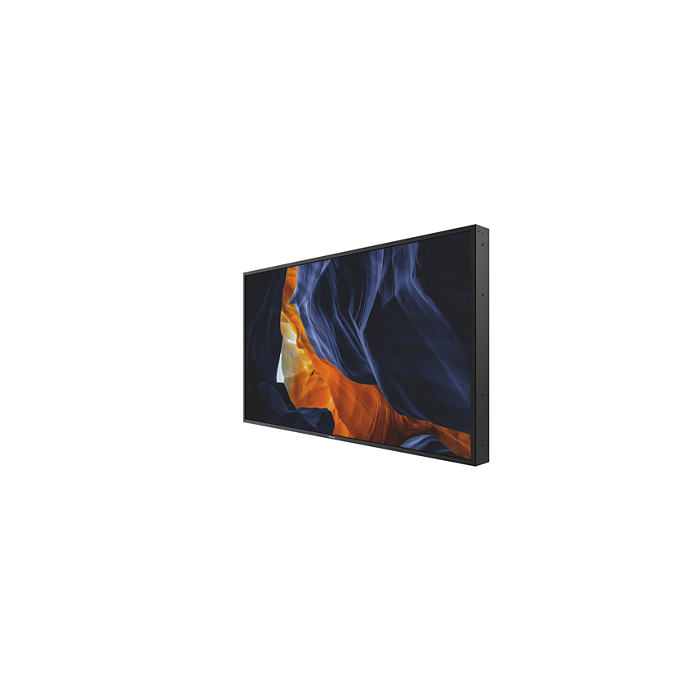

55BDL3102H 55" Full HD Display
End of Life
H-Line Display 55" 2500cd/m2, Full HD
Enquire Now
Enquire about this product:
55" 2500cd/m2, Full HD
- 55"
- 2500cd/m2
- Full HD
-
- Diagonal screen size (inch)
-
54.6 inch
- Diagonal screen size (metric)
-
138.7 cm
- Optimum resolution
-
1920 x 1080 @ 60Hz
- Brightness
-
2500 cd/m²
- Contrast ratio (typical)
-
5000:1
- Dynamic contrast ratio
-
500,000:1
- Aspect ratio
-
16:9
- Response time (typical)
-
6 ms
- Pixel pitch
-
0.63 x 0.63 mm
- Display colors
-
16.7 M (8 bits)
- Viewing angle (horizontal)
-
178 degree
- Viewing angle (vertical)
-
178 degree
- Panel resolution
-
1920x1080p
-
Connectivity
- Video input
-
-
Component (BNC) x1
-
Composite (Share component Y)
-
Display Port1.2x1
-
DVI-Dx 1
-
HDMI 1.4x2
-
VGA (Analog D-Sub) x 1
-
- Video output
-
-
DisplayPort1.2x1
-
DVI-I x1
-
- Audio input
-
-
3.5 mm jack
-
Audio Left/Right (RCA)
-
- Audio output
-
-
3.5mm jack
-
External speaker connector
-
- External control
-
-
RS232C (in/out) 2.5 mm jack
-
RJ45
-
IR (in/out) 3.5 mm jack
-
- Other connections
-
-
AC-out
-
OPS
-
USB 2.0 (Type A) x 1
-
-
Dimensions
- Bezel width
-
15.6 mm
- Set Width
-
1243.2 mm
- Set Height
-
714 mm
- Set Depth
-
137.9 mm
- Set Width (inch)
-
48.9 inch
- Set Height (inch)
-
28.1 inch
- Set Depth (inch)
-
5.43 inch
- VESA Mount
-
400 x 400 mm, M6
- Product weight
-
32.2 kg
- Product weight (lb)
-
78.94 lb
- Smart insert height
-
200 mm
- Smart insert width
-
100 mm
- Smart Insert mount
-
100 x 100mm,100 x 200mm
-
Convenience
- Placement
-
-
Landscape
-
Portrait
-
- Network controllable
-
-
RS232
-
HDMI (One Wire)
-
LAN (RJ45)
-
- Signal Loop Through
-
-
RS232
-
IR Loopthrough
-
- Energy saving functions
-
Smart Power
- Remote control signal
-
Lockable
- Keyboard control
-
-
Hidden
-
Lockable
-
- Ease of installation
-
-
Smart Insert
-
Carrying Handles
-
- Other convenience
-
Carrying handles
- Screen saving functions
-
Pixel Shift, Low Brightness
- Picture performance
-
Advanced color control
-
Power
- Mains power
-
100 ~ 240 VAC, 50 ~ 60 Hz
- Consumption (Typical)
-
300 W
- Standby power consumption
-
<0.5W
-
Sound
- Built-in speakers
-
2 x 10W RMS
-
Operating conditions
- Temperature range (operation)
-
0 ~ 40 °C
- Temperature range (storage)
-
-20 ~ 60 °C
- Relative humidity
-
20 ~ 80(operation),5 - 95% (storage) %
- MTBF
-
50,000 hour(s)
- Altitude
-
0 ~ 3000 m
-
Accessories
- Included accessories
-
-
AC Power Cord
-
Batteries for remote control
-
Quick start guide
-
Remote Control
-
RS232 cable
-
- Included Accessories
-
-
RS232 daisy-chain cable
-
Edge Alignment Kit (1) -1 pcs
-
Edge Alignment Kit (2) - 2 pcs
-
Logo guide
-
Philips logo
-
Thumbscrew (8pcs)
-
-
Miscellaneous
- On-Screen Display Languages
-
-
English
-
French
-
German
-
Italian
-
Polish
-
Russian
-
Spanish
-
Turkish
-
Simplified Chinese
-
Traditional Chinese
-
Arabic
-
Japanese
-
Portuguese
-
Dutch
-
- Regulatory approvals
-
-
CB
-
CE
-
UL/cUL
-
EAC
-
EMF
-
FCC, Class A
-
PSB
-
PSE
-
VCCI
-
- Warranty
-
3 year warranty
