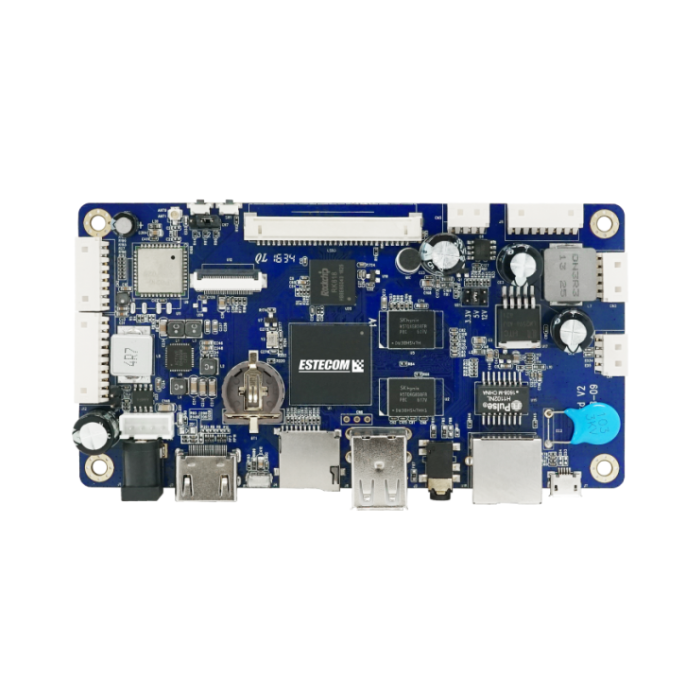

A3188-S Multi Media Player
Multi-purpose LCD controller
Android & Linux
Quad Core Cortex A9
CMS avail to suit
A3188-S is a low power, high performance processor for mobile phones, personal mobile internet device and other digital multimedia applications, and integrates quad-core Cortex A9 with separately NEON and FPU coprocessor. A3188-S supports almost full-format video decoder by 1080p@60fps, also support H.264/MVC/VP8 encoder by 1080p@30fps, high quality JPEG encoder/decoder, special image preprocessor and postprocessor. Embedded 3D GPU makes Android 3188 completely compatible with OpenGL ES2.0 and 1.1, OpenVG 1.1. Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation
Dimension
133x 70mm
Android version
4.4.4 Ice cream sandwitch
Output Signal
2CH LVDS, HDMI
Maximum Resolution
1920x1080 @60Hz
Local Control
OSD (On Screen Display) and IR
Remote Control (UART)
RS-232
Operating Temperature
-20°C ~70°C
Humidity
8% ~ 90%
Storage
8GB NAND Memory, MicroSD (Max 32GB)
Input Power Voltage
+24VDC or +12VDC
Storage Temperature
-30°C ~80°C
Ethernet
IEEE802.3 10/100Mbps with Twisted pair
WiFi
IEEE802.11b/g/n
USB
External 2port, Internal 1port
