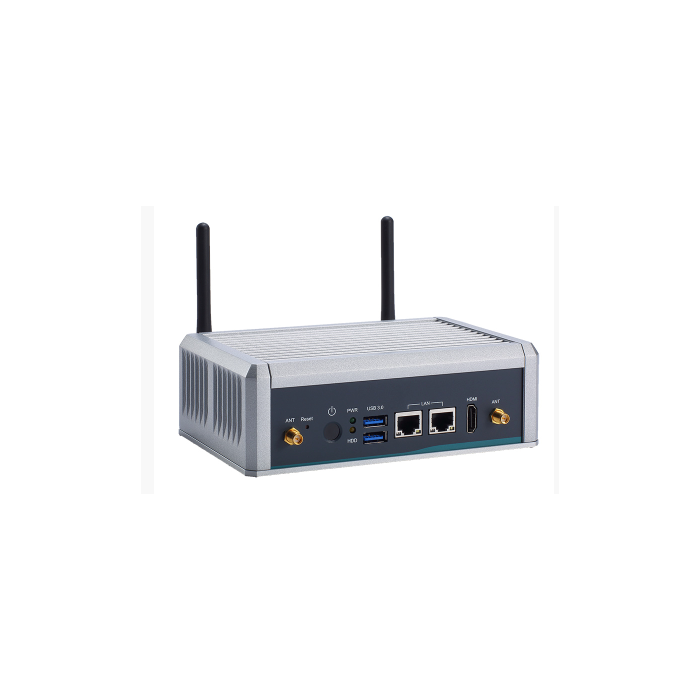

AIE500-901-FL NVIDIA Jetson TX2, NVIDIA Pascal GPU

In stock
SKU
AIE500-901-FL
Brand: Axiomtek

Fanless Edge AI System with NVIDIA® JETSON™ TX2 Series SoM, 1 HDMI 2.0, 2 GbE LAN and 2 USB

Enquire Now
Enquire about this product:

AIE500-901-FL is an Artificial Intelligence embedded system for edge AI computing and deep learning. The high-performance embedded system houses an NVIDIA Jetson™ TX2 module which has a powerful 64-bit ARM® A57 processor; NVIDIA® Pascal™ GPU with 256 CUDA cores; and 8GB of 128-bit LPDDR4 memory.



Fanless Edge AI System with NVIDIA® JETSON™ TX2 Series SoM, 1 HDMI 2.0, 2 GbE LAN, 2 USB, 2 COM or 2 CAN and 12 or 24 VDC



·         NVIDIA® Jetson™ TX2 with Pascal™, 256 CUDA cores GPU

·         High performance AI computing for GPU-accelerated processing

·         Ideal for intelligent edge applications, machine learning and computer vision

·         Supports M2. PCIe & SATA SSD and MicroSD slot

·         Supports 2 USB 3.1 Gen 1 and 2 COM or 2 CAN

·         Wide operating temperature from -30°C to +60°C

·         JetPack supported

CPU
  • CPU Board: NVIDIA® Jetson™ TX2
  • CPU: HMP Dual Denver 2/2 MB L2 + Quad ARM® A57/2 MB L2
GPU
  • NVIDIA® Pascal™, 256 CUDA cores
Chipset
  • SoC integrated
System Memory
  • 1 x 8GB 128-bit LPDDR4@1866 MHz onboard
COM
  • 2 x RS-232 default (or 2 x CAN by jumper settings)
USB
  • 2 x USB 3.1 Gen1
  • 1 x Micro USB
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet (NVIDIA® + Intel® i210-IT)
Display
  • 1 x HDMI 2.0 with 4K2K supported
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • Onboard 32GB eMMC (via Jetson™ TX2 8GB)
  • 1 x M.2 Key M 2280 with PCIe x1 and SATA SSD slot
  • 1 x Micro SD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x Recovery switch
  • 1 x Reset button
  • 1 x Power button
  • 1 x 12 or 24 VDC power input connector
  • 4 x SMA-type antenna connector
  • 802.11ac WLAN, Bluetooth onboard (TX2 8GB only)
Power Supply
  • 12 or 24 VDC
Watchdog Timer
  • Built-in TX2
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -30°C to +60°C (-22°F to +140°F)
Relative Humidity
  • 10% - 95%, non-condensing
Vibration
  • 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)
  • 171 x 110 x 57 mm (6.73" x 4.33" x 2.24")
Weight (net/gross)
  • 0.9 kg (1.98 lb)/1.6 kg (3.52 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Linux Ubuntu 18.04
Mounting
  • Wall mount kit
  • VESA arm kit
  • DIN-rail kit
