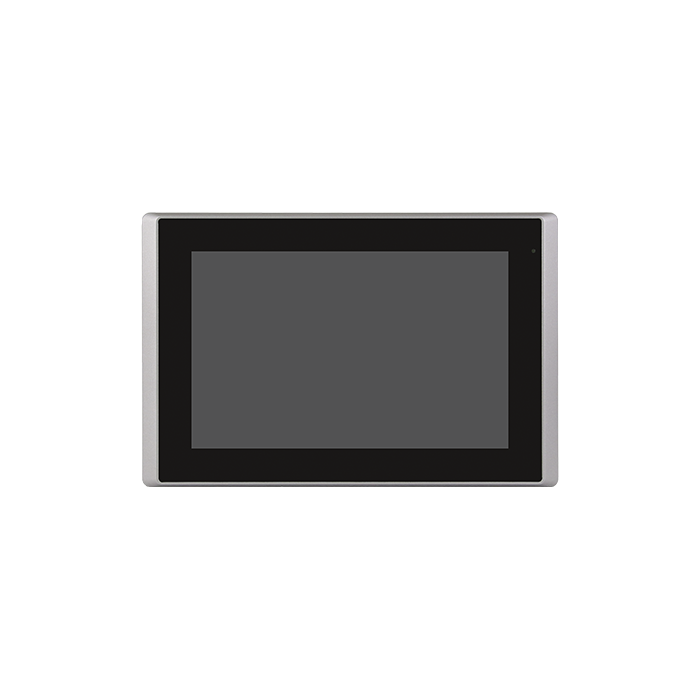

ARCDIS-110A - 10.1” Front Panel IP66 Aluminium Die-casting Display

In stock
SKU:
ARCDIS-110A P/R
Enquire Now

Please fill in your details below, we will get back to you as soon as possible

10.1" 1280 x 800, 170(H) / 170(V)
Solid aluminum die-casting chassis
VGA, DVI, HDMI and DP input
Wide range DC 9~36V power input
Variety of LCD panel size selections

I/O Port

  • 1 x VGA
  • 1 x DVI-D (share with HDMI)
  • 1 x DP
  • 1 x HDMI (share with DVI-D)
  • OSD Control Membrane OSD: at the rear side
  • Power: 1 x 3-pin terminal block for DC 9~36V power input
  • LED Light: 1 x system power LED light
  • Speaker" 1 x 2W speaker for option
  • 1 x USB type B for touch control
  • Optional I/O:
    • 1 x Line-in by phone jack
    • 1 x RS-232 DB-9 for touch control

Touch Screen

  • Type
    • Resistive Touch (for AR Model)
    • Projected Capacitive Touch (for AP Model)
    • Glass (for AG model)
  • Interface
    • USB default (Resistive / Projected Capacitive Touch)
    • RS-232 Option (Resistive Touch)
  • Light Transmission(%)
    • Resistive Touch: over 80%
    • Projected Capacitive Touch: over 90%

Environmental

  • 0~50°C / -20~60°C for option
We build to order
