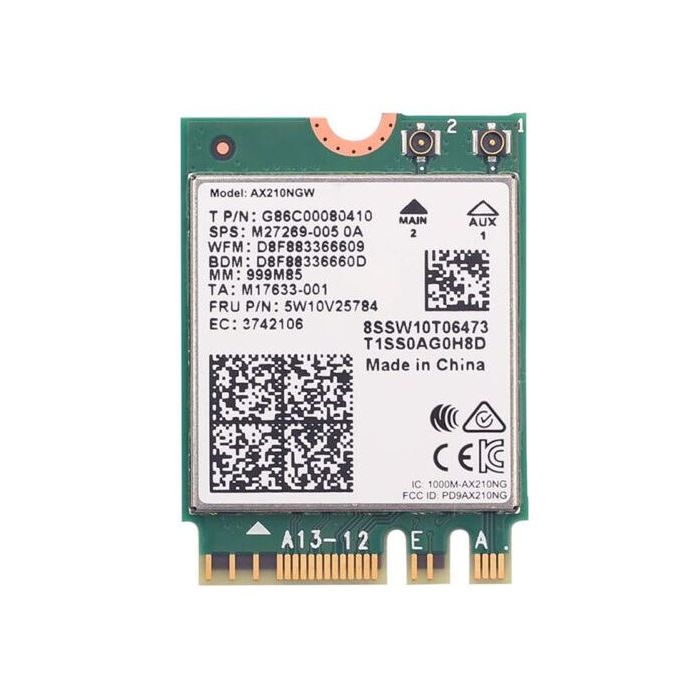

AX210 Wi-Fi 6E (Gig+) Module
2nd Generation Wi-Fi 6 module with extended Wi-Fi 6E (6GHz band) support
Key Features:
- Greater Network Flexibility
- Faster Speed
- Reduced Latency
- Wi-Fi 6E Tri-Band 2x2 160MHz
- Bluetooth 5.2
- Wireless Functionality in Pre-boot Environment
- Wirelessly Project to the Big Screen
- Intel vPro Technology4
The Intel Wi-Fi 6E AX210 (Gig+) adapter was designed to support Wi-Fi 6E technology and associated Wi-Fi Alliance certification. The item supports Bluetooth 5.3 and dual-stream Wi-Fi in the 2.4GHz, 5GHz, and 6GHz frequencies. Additionally, it enables the Wi-Fi 6 R2 features, such as UL MU-MIMO1. These new features significantly improve the user experience in dense deployments and optimize the advantages of Wi-Fi 6, including Gigabit speed, incredibly low latencies, and improved reliability benefits across new radio frequencies exclusive to Wi-Fi 6E devices. The Intel Wi-Fi 6E AX210 module can significantly enhance your connected experience at home, work, or on the go when used in conjunction with Intel Core processors and outstanding Intel wireless innovations.
Key Features:
- Greater Network Flexibility
- Faster Speed
- Reduced Latency
- Wi-Fi 6E Tri-Band 2x2 160MHz
- Bluetooth 5.2
- Wireless Functionality in Pre-boot Environment
- Wirelessly Project to the Big Screen
- Intel vPro Technology4
| General | |
|---|---|
| Dimensions (H x W x D) |
M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)] M.2 1216: 12mm x 16mm x 1.7 (+-0.1) mm |
| Weight |
M.2 2230: 2.83 +/– 0.3 g M.2 1216: 0.67 +/– 0.1 g |
| Radio ON/OFF Control | Supported |
| Connector Interface | M.2: PCIe*, USB |
| Operating Temperature (Adapter Shield) | 0°C to +80°C |
| Humidity Non-Operating | 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C) |
| Operating Systems | Microsoft* Windows 11*, Microsoft* Windows 10*, Linux* |
| Wi-Fi Alliance6 | Wi-Fi CERTIFIED* 6 with Wi-Fi 6E, Wi-Fi CERTIFIED* a/b/g/n/ac, WMM*, WMM*-Power Save, WPA3*, PMF*, Wi-Fi Direct*, Wi-Fi Agile Multiband*, Wi-Fi Location R2 HW readiness7 |
| IEEE WLAN Standard |
IEEE 802.11-2020 and select amendments (selected feature coverage) IEEE 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax; Fine Timing Measurement based on 802.11-2016, 802.11az HW readiness8 |
| Bluetooth® | Bluetooth® 5.2 |
| Security Features8 |
|
| Security Methods | WPA3* personal and enterprise including WPA2* transition mode |
| Authentication Protocols | 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0-MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA’) |
| Encryption | 128-bit AES-CCMP, 256-bit AES-GCMP |
| Compliance | |
| Regulatory | For a list of country approvals, please contact your local Intel representatives. |
| US Government | FIPS9 140-2 |
| Product Safety | UL, C-UL, CB (IEC 60950-1) |
| PRODUCT NAME | MODEL NUMBER | VERSION |
|---|---|---|
| Intel® Wi-Fi 6E AX210 | AX210NGW AX210D2W |
Wi-Fi 6E (6GHz), 2x2, Bluetooth® 5.2, M.2 2230 Wi-Fi 6E (6GHz), 2x2, Bluetooth® 5.2, M.2 1216 |
