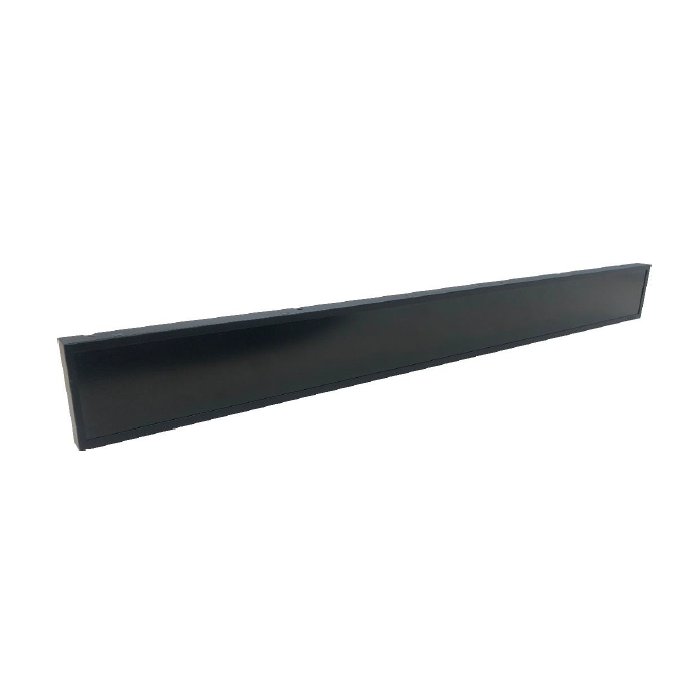

BM23A-AS 23.1" Shelf Edge Strip Display
23” 400 nits Shelf Edge Strip Display
•ADSDS Panel Technology
•Android 7.1 OS with A40 Chipset
•400nits Brightness
•Suitable for Shelf Installation
•Industrial Slim design
•Full Metal Shell
Display
Model BM23A-AS
LCD Tech. ADS
Screen Size 23.1 inch
Resolution 1920 ×158
Display Colors 8bit
Brightness 400 nits
Contrast Ratio 1200:1
Viewing Angle(H/V) 170°/170°
Backlight Unit LED
Backlight Life 30000 Hrs
Internal Player
OS Android 7.1
CPU A40/1.2GHz/Quad-core
RAM 1GB
ROM 8GB
Network Wi-Fi 802.11.a
I/O Interface Micro USB ×1，TF card slot ×1, USB Type C ×1
Power
Power supply DC 12V, 2A (Adaptor)
Power consumption 12W
Environment
Operation temperature 0℃~40℃
Operation humidity 10%~90% RH
Physical
Frame SECC BLACK
Back cover SECC BLACK
Body Dimension (WxHxD) 597.2 ×60.2 ×16.6 mm
Packaging Dimension 665 ×505 ×230 mm
Net Weight 0.75 Kg
