BT900 - BT4.0 Smart Basic

- Bluetooth v4.0 dual mode (BT and BLE)
- Broad range of hardware interfaces: UART, I2C, SPI, ADC, GPIO
- Tiny footprint (19mm x 12.5mm x 2.5 mm)

Enquire about this product:

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Downloads

BT900 - BT4.0 Smart Basic

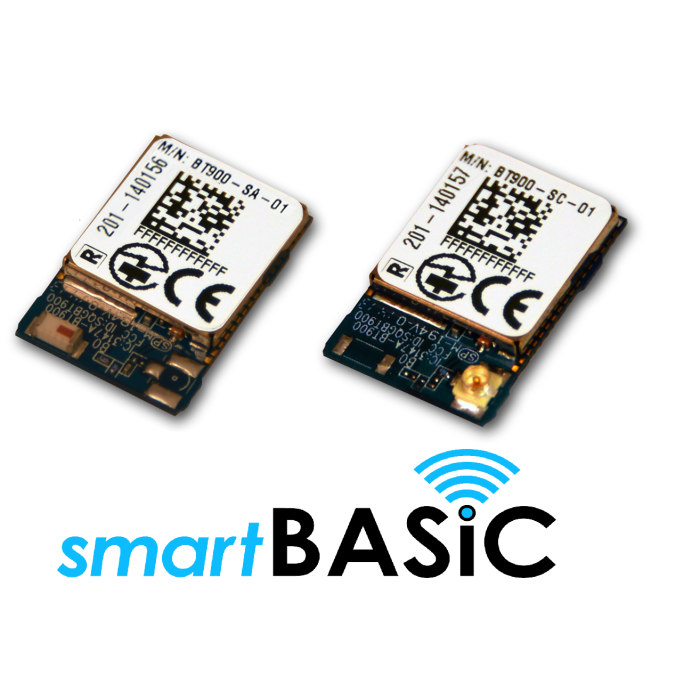

Antenna Type: Internal Multilayer ceramic (BT900-SA) or uFL connector (BT900-SC)

Applications: Logistics, Barcode scanners, Point of Sale terminals, Health and Medical devices

Approvals: FCC/IC/CE/MIC Bluetooth SIG

Azimuth beam width (deg): Up to 100 metres

Bluetooth Version: Version 4.0

Certifications: FCC / IC / CE / MIC Bluetooth SIG All BT900 Series

Coexistence/Compatibility (802.11 (Wi-Fi): 3 wire CSR schemes supported (Unity -3; Unity-3e)

Current (Maximum): Max Peak Current (@ + 8dBm TX) -85 mA

Current Consumption: Standby Doze (@ 4MHz) - 2.7 mA Deep Sleep -233 uA (external signal wake up)

Data Rates: 3 Mbps (Classic BT-BR/EDR)

Datasheet ID: Lairdtech

Dimension (Height - mm): 2.50

Dimension (Length - mm) 12.50

Dimension (Width - mm) 19.00

Frequency: 2.402 - 2.480 GHz

Frequency Range (GHz Max): 2.48

Frequency Range (GHz Min): 2.40

GPIO: 18 (maximum-configurable) lines

I2C Interface: 1 (configurable from GPIO total)

Interface (SPI): 1 (configurable from GPIO total)

Lead Free: Lead-free and RoHS compliant

Max Transmit Power: +8 dBm (Configurable down to -20 dBm)

Max. Power Consumption: Max peak Current (@ +8dBm TX) -85 mA

Output Power: +8 dBm (maximum)

Product Headline: Intelligent Dual-Mode BTv4.0 Module Featuring smartBASIC

Product ID: BT900 Series

Product Line: Bluetooth v4.0 BLE

Profiles: SPP (Serial Port Profile)-Greater than 500kbps, GATT Client & Peripheral -Any Custom Services

Protocols: smartBASIC programming language

Range: Up to 100 metres

Receive Sensitivity: -90 dBm typical

Supply Voltage: 1.8V - 3.6V

Temperature Range: Operating -40 to +85 C

UART Data Transfer Rate: Greater than 500 kbps

UART Interface: TX, RX, CTS, RTS, DTR, DSR, DCD, RI can be implemented in smartBASIC-using General Purpose I/O Default 115200, N 8,1 From 1200 bps to 4 Mbps

Warranty: Limited Lifetime
