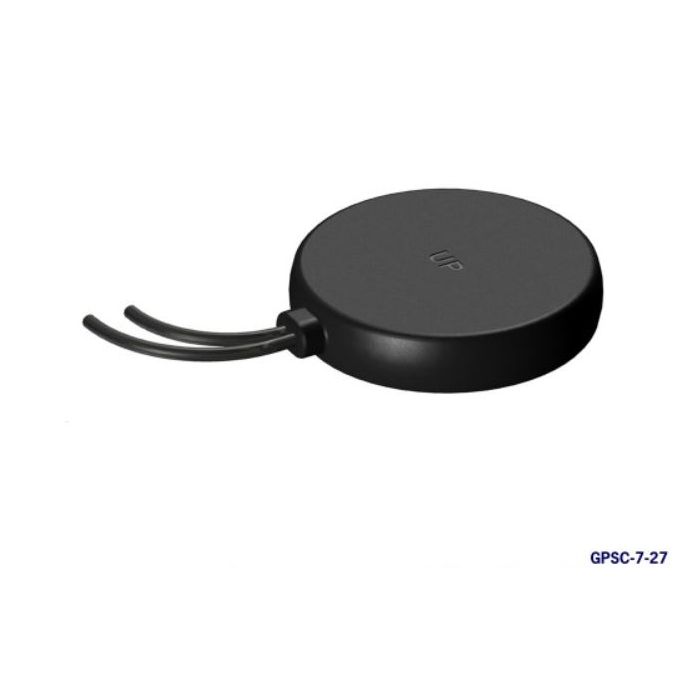

GPSC-7-27-3SP Dash-Glass LTE + GNSS Antenna

In stock
SKU
GPSC-7-27-3SP

Dual function cellular & GPS/GNSS Telematics Antenna, dashboard or windshield mount, Cellular/LTE and GPS/GNSS, suitable for M3 Category vehicles and available with SMA or FAKRA connectors.

Enquire Now
Enquire about this product:

The compact, robust low-profile housing contains an antenna element covering all current global cellular and LTE bands in freq. range 698-960/1710-2700MHz along with a GPS/GNSS/Galileo/Beidou antenna for applications which require a positioning function.

The antenna can be fitted on or under a vehicle dashboard or on a windshield using the supplied acrylic adhesive sealing pad. Supplied with integrated 3m (10’) cables

Frequency Range (MHz)

Element 1                                                                          698-960 / 1710-2700

Element 2                                                                          1562-1612

Pattern                                                                               Omni-directional

Fixing                                                                                   Adhesive pad
