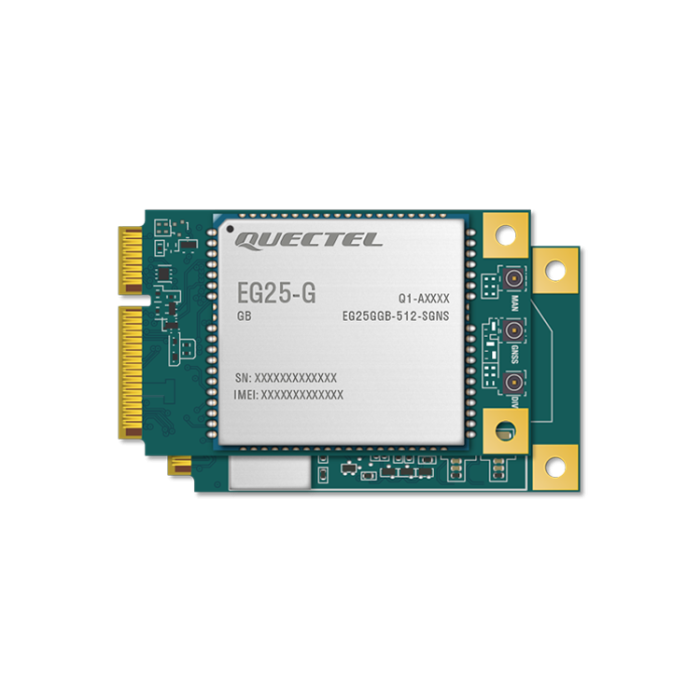

EG25-G LTE Cat 4 mPCIe with SIM Holder
LTE category 4 module adopting standard PCI Express Mini Card form factor
Key Features:
- LTE Cat 4 module
- 51.0mm x 30.0mm x 4.9mm
- 9.8g
- Standard PCI Express® Mini Card form factor (Mini PCIe)
- Max. 150Mbps downlink / 50Mbps uplink under LTE
- Extended temperature range of -40°C to +80°C
The EG25-G Mini PCIe is an LTE category 4 module in a standard PCI Express® Mini Card form factor measuring 51.0mm x 30.0mm x 4.9mm, which meets the 3GPP Release 11 standard.
Delivering maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, the EG25-G Mini PCIe supports a range of applications that require fast and reliable transmission of large amounts of data, and backward compatibility with existing EDGE and GSM/GPRS networks ensures connection even in remote areas without 3G or 4G coverage. In addition multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability.
The EG25-G Mini PCIe supports Qualcomm IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the optional multi-constellation GNSS receiver greatly simplifies product design and provides quicker, more accurate and dependable positioning. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10/11, Linux, Android and eCall) allow the module to serve a wide range of IoT applications such as industrial routers, industrial PDAs, rugged tablet PCs, and digital signage.
|
Frequency Bands |
LTE-FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 LTE-TDD: B38/39/40/41 |
|
WCDMA: B1/2/4/5/6/8/19 GSM: B2/3/5/8 |
|
|
Data Rates |
LTE-FDD: Max. 150 Mbps (DL) / Max. 50 Mbps (UL) LTE-TDD: Max. 130 Mbps (DL) / Max. 30 Mbps (UL) |
|
UMTS: DC-HSDPA Max. 42 Mbps (DL) / HSUPA Max. 5.76 Mbps (UL) / WCDMA Max. 384 kbps (DL & UL) |
|
|
GSM: EDGE Max. 296 kbps (DL) / Max. 236.8 kbps (UL) GPRS Max. 107 kbps (DL) / Max. 85.6 kbps (UL) |
|
|
Voice Features |
Speech Codec Modes: HR/FR/EFR/AMR/AMR-WB Echo Arithmetic: Echo Cancellation/Noise Suppression |
|
Digital Audio and VoLTE (Optional) |
|
|
Interfaces |
USB × 1: USB 2.0 (480 Mbps) PCM × 1: Digital Audio through PCM (Optional) I2C × 1 |
|
(U)SIM × 1: 1.8/3.0 V UART × 1: Main UART |
|
|
Others: LED_WWAN#, W_DISABLE#, PERST#, Antenna Connectors for Main/Rx-Diversity/GNSS |
|
|
Enhanced Features |
DTMF, Audio Playback/Recording, (U)SIM Card Detection, QuecFile®, QuecLocator® |
|
Downlink MIMO, DFOTA, GNSS (GPS/GLONASS/BDS/Galileo/QZSS) |
|
|
Electrical Characteristics |
Output Power: GSM850/EGSM900: 33 dBm ±2 dB; DCS1800/PCS1900: 30 dBm ±2 dB |
|
Consumption: 3.3 mA (Sleep, Typ.), 35 mA (Idle) |
|
|
Sensitivity: LTE bands: -99.1 to -100.2 dBm WCDMA: -109.2 to -110.5 dBm GSM: -107.5 to -108 dBm |
|
|
Software Features |
Drivers: Windows 7/8/8.1/10/11, Linux 2.6–6.5, Android 4.x–13.x |
|
Protocols: TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, HTTPS, and more |
|
|
General Features |
Operating Temp.: -35 to +75 °C (Standard), -40 to +80 °C (Extended) |
|
Dimensions: 51.0 mm x 30.0 mm x 4.9 mm Weight: Approx. 10.5 g |
|
|
Mini PCIe Package Supply Voltage: 3.0–3.6 V (Typ. 3.3 V) |
|
|
Approvals |
Carrier: Deutsche Telekom, Verizon, AT&T, U.S. Cellular, Telus, Rogers (Under Development) |
|
Regulatory: GCF, CE, UKCA, PTCRB, FCC, IC, Anatel, IFETEL, KC, NCC, JATE, TELEC, RCM, ICASA |
|
|
Others: RoHS, WHQL |
