EMPU-3401
In stock
SKU
EMPU-3401

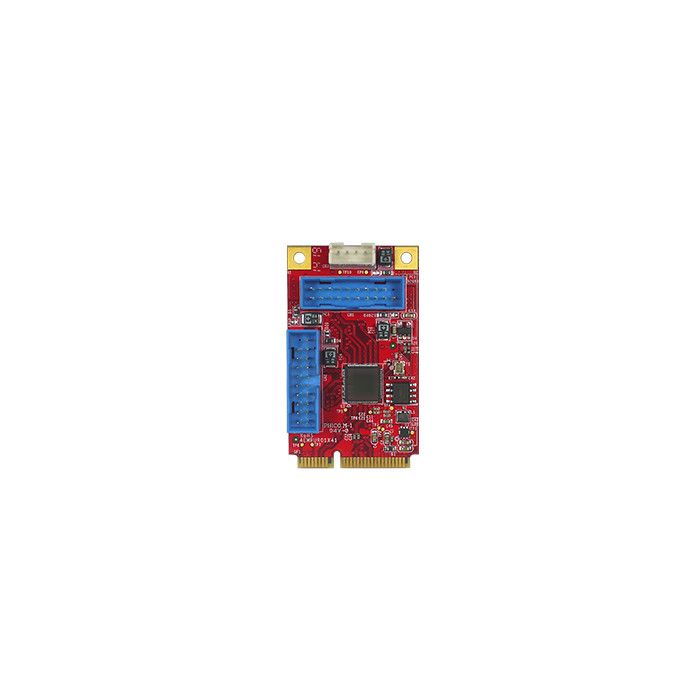

mPCIe to four USB 3.0 Module
Enquire Now
Enquire about this product:
mPCIe to four USB 3.0 Module
· PCI Express 2.0 to 4 x USB ports with SuperSpeed (5Gbps) data rate.
· Independent 1.5A overcurrent protection (OCP) for each port.
· Compliant with xHCI 1.0, USB 3.0 Rev 1.0.
· Two USB ports from CN1 provides limited power natively.
· Two USB ports from CN2 needs external power.
· Supports USB Battery Charging Specification Revision 1.2.
· Optional Industrial Temperature (-40°C to +85°C) support.
· 30μ golden finger, 3 years warranty.
· Industrial design, manufactured in innodisk Taiwan
| Module Name | EMPU-3401 |
| Module Type | mPCIe to four USB 3.0 Module |
| Form Factor | mPCIe |
| Input I/F | PCI Express 2.0 |
| Output I/F | USB 3.0 |
| Output connector | 19 Pin box header |
| TDP | 1.12W (3.3V x 340mA) |
| Dimensions (W x L x H/mm) | 30.0 x 50.9 x 8.45 |
| Temperature | Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C |
| Environment | Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms |
| Notes | Please download driver from MyInnodisk website. Windows: XP(32 bit), 7(32/64 bit), Vista Linux: Kernel v2.6.0, v2.6.8 *After Win8 and Linux Kernel v2.6.31 supports built-in xHCI 1.0. |
