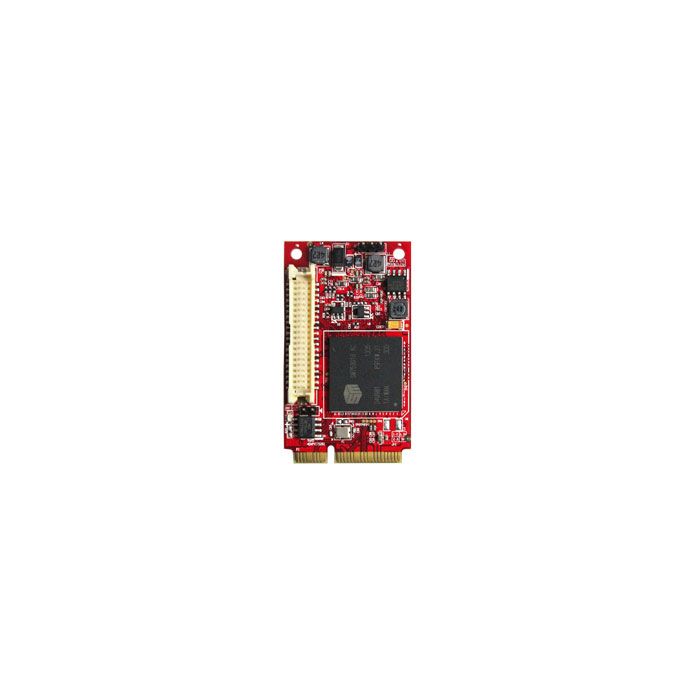

EMPV-1202

In stock
SKU
EMPV-1202

mPCIe to VGA & 18/24 bit LVDS module

Enquire Now
Enquire about this product:

mPCIe to VGA & 18/24 bit LVDS module



·         VGA Output up to 1920x1080, up to 75Hz vertical rate

·         LVDS resolution supports up to 1600 x 1200

·         EMPV-1202-C1/W1 Support 18 bit panel and 24 bit JEIDA LVDS

·         EMPV-1202-C2/W2 Support 24 bit VESA LVDS

·         Allow for 90º, 180º, and 270º rotation of on-screen images

·         Optional Industrial Temperature (-40°C to +85°C) support

·         30μ” golden finger, 3 years warranty.

·         Industrial design. Manufactured in innodisk Taiwan

Module Name EMPV-1202
Module Type mPCIe to VGA & 18/24 bit LVDS module
Form Factor mPCIe
Input I/F PCI Express 1.0
Output I/F VGA, 18/24 bit LVDS (C1 for JEIDA, C2 for VESA)
Output connector 40pin 1.25mm (40DP-1.25)
TDP 1.98W(3.3V x 600mA)
Dimensions (W x L x H/mm) ST: 50.95 x 30 x 8.45
WT: 50.95 x 30 x 8.98
Temperature Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C
Storage: -55°C ~ +95°C
Environment Vibration: 5G @7~2000Hz
Shock: 50G @ 0.5ms
Notes Need to connect external 5V power for LVDS panel.
OS Support : Windows XP (32 bit), Windows 7/8/8.1/10 (32/64 bit),
Linux Ubuntu 12.04-16.04(32/64bit),
Linux Fedora 17- 21(32/64bit),
Linux CentOS/Redhat 6.5 (32/64bit)- 7.2(64bit)
Please download driver from Myinnodisk website.
