Brand: GPI Korea

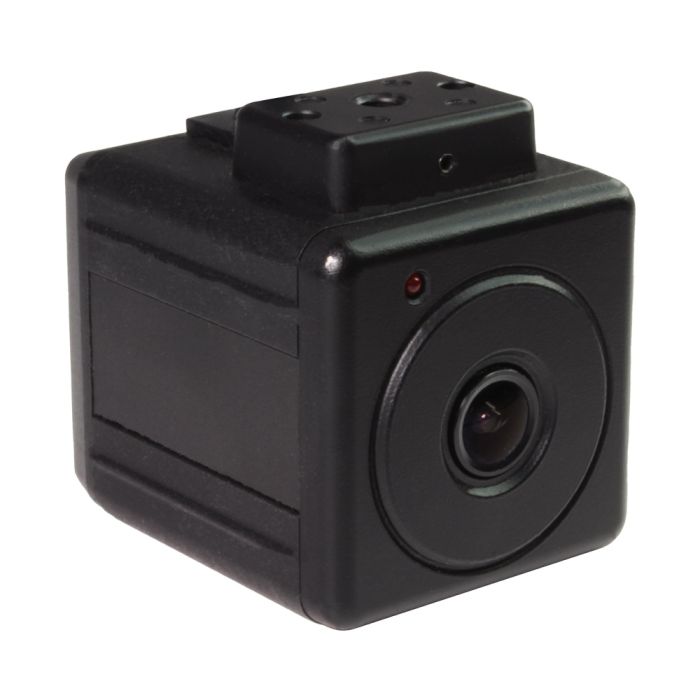

GPCF-675A1TD 5MP In Cabin POE Vehicle Camera with MIC
In stock
SKU
GPCF-675A1TD
5MP PoE IP Front Facing Camera with built-in mic
Enquire Now
Enquire Now
The GPCF-675A1TD is a PoE powered IP camera that operates within a wide temperature range of -20℃~ + 70℃. This camera has a microphone built-in and runs at up to 30fps @ 2592x1944.
This IP Front Camera is typically utilised in a forward-facing position with the in-car video system to record the process of police inspection and vehicle tracking. These devices are lightweight and tiny but offer crystal clear HD video with no loss of detail and maximum coverage.
Features
- 1/2.8” 5MP CMOS sensor
- 2.8mm fixed lens - other options avail see Downloads
- Up to 30fps @ 2592x1944
- Supports RTP/RTSP
- PoE
- Lightweight and Compact
- Operating Temperature -20℃~ + 70℃
- Live-cast for up to 16 clients
| Camera | Lens | 2.8mm (Viewing Angle 134.5°(D) x61.5°(V) x 113.8°(H)) | |
| Image Sensor | Diagonal 6.52 mm (Type 1 / 2.8”) CMOS active pixel type solid-state image sensor with a square pixel array | ||
| Number of Effective Pixels | SOC | ||
| Min. Illumination | Color Mode: 0.1 Lux | ||
| Scanning Mode | Progressive Scan | ||
| Network | Video Compression | H.265, H.264, Motion JPEG | |
| Video Resolution | 30 FPS(5M-16:19) : 2592x1944, 1920x1080, 1280x1024, 1280x720, 704x480, 640x480, 320x240 | ||
| Frame rate | Primary up to 30fps @ 2592x1944 | ||
| Video Streaming | Motion JPEG and H.264/265 Triple Streaming (Simultaneously) Additional JPEG streaming (total quadruple streaming) Independently Controllable frame rate and bandwidth |
||
| Time Stamp | Supported ( Date/Time Only) in primary stream | ||
| Image setting | Compression levels: 6 level Low Compression, Highest, High, Normal, Low, Lowest Colour: colour, black & white |
||
| LAN interface | 10/100BaseT Ethernet auto-sensing | ||
| Built-in Motion detections | Up to 4 zones Motion Sensitivity : 0 ~ 100 : 100 is hypersensitive |
||
| Simultaneous clients | Live-cast for up to 16 clients | ||
| Web browsing | Video access from a Web browser | ||
| Developer support | Provides HTTP CGI API, ActiveX control development kit | ||
| Supported protocols | HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP & etc | ||
|
Operation Environments |
Operating Temperature | -20℃~ + 70℃ | |
| Power | PoE | ||
| Power Consumption | 2.1W | ||
