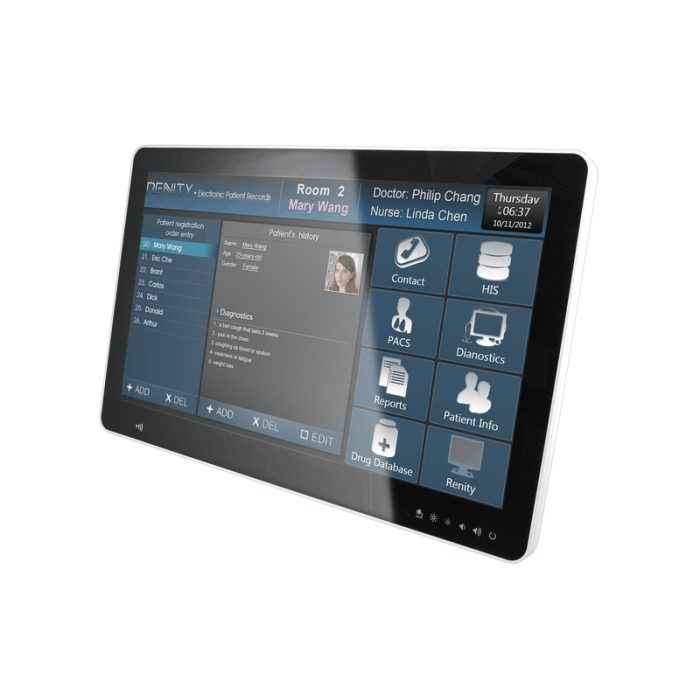

HID-2138 21.5” Medical Panel PC Front IP65
HID 21.5/i5-1145G7E/8GRAM/NFC/2USB/2USBTypeC/2LAN, 19V Medical Adapter
Key Features:
- 21.5" FHD Display with PCAP Multi-Touch
- Intel 11th gen Tiger Lake U Core Processor
- Front Panel IP65
- Fanless Design
- Ultra-Slim Design
- Optional NFC
- Optional Webcam
- Optional Handset
The HID-2138 features the latest Intel 11th generation Tiger Lake Core processor, making it an ideal choice for a bedside terminal that can hold all the critical patient information. The device also serves as a bedside infotainment centre with adjustable volume and brightness, ensuring maximum comfort for patients. Moreover, The HID-2138 can replace the nursing cart by holding all the necessary information in a more organized and efficient manner.
The HID-2138 boasts several key features that make it an excellent choice for healthcare facilities. With its simple data entry mechanism, the device ensures easy and accurate input of patient data. Additionally, the device offers advanced security features such as the Trusted Platform Module (TPM) and an NFC/RFID module, which ensure secure authorization and management of the system. The HID-2138 is also equipped with a P-Cap multi-touch screen that allows hospital personnel to operate the device while wearing medical gloves, ensuring both convenience and hygiene in clinical settings.
Key Features:
- 21.5" FHD Display with PCAP Multi-Touch
- Intel 11th gen Tiger Lake U Core Processor
- Front Panel IP65
- Fanless Design
- Ultra-Slim Design
- Optional NFC
- Optional Webcam
- Optional Handset
| -System Information- | |
| Processor | 11th Generation Intel® Core™ i7/i5/i3/Celeron Processor |
| Platform Controller Hub | integrated in Processor (SOC) |
| System Memory | Two 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB Max |
| I/O Chipset | IT8528E |
| Watchdog Timer | H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step |
| H/W Status Monitor | CPU temperature monitoring System temperature monitoring VCORE voltage monitoring VIN voltage monitoring |
| TPM | Onboard NuvoTon NPCT754AABYX support TPM 2.0 |
| SBC | HID-2138 Mother Board |
| Expansion | |
| Expansion | 1 x Low Profile PCIE 1 x M.2 for 4G/5G |
| Storage | |
| Storage | 1 x M.2 Storage |
| Panel | |
| LCD Size | 21.5" |
| Display Type | Full HD |
| Resolution | 1920 x 1080 |
| Pixel pitch | 0.24795 (H) x 0.24795 (V) |
| Luminance | 250 cd/m² |
| Contrast ratio | 1000 |
| Viewing angle | 89(U), 89(D), 89(L), 89(R) |
| Response time | 22ms |
| Backlight | LED |
| Touch Type | Projective Capacitive |
| Touch Light Transmission | 86% |
| Touch Controller | USB touch (EETI EXC3188) |
| I/O | |
| USB Port | 2 x USB 2.0 2 x USB Type C (USB 3.1/Display/PD 3.0 15V) |
| COM Port | 1 (Optional) |
| SATA | 1 x SATA III |
| Other | Dual LED Reading Light Bar I/O Cover Optional Handset & 1D Barcode Scanner |
| Audio | |
| Audio Codec | Realtek ALC888S |
| Speaker Output | 2 x 2W |
| Certifications | |
| Certification Information | CE : IEC/EN60601-1-2 FCC : Part 15 Class B UL60601-1 |
| Ethernet | |
| LAN Chipset | 1 x Intel® I219LM 1 x Intel® I225LM or I226LM |
| Ethernet Interface | 10/100/1000/2500 Base-Tx GbE compatible |
| LAN Port | 2 x RJ-45 |
| Power Requirement | |
| DC Input Connector | Lockable DC Jack, +12V~+26V |
| Power Mode | AT/ATX (ATX is default setting) |
| Adapter | Medical grade Input: 100~240 Vac/50~60Hz; Output: 90W Adapter (19V/4.74A Adapter) |
| Mechanical & Environmental | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -30°C ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 0% ~ 90% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 539.6 x 342.6 x 45.2 mm |
| Weight | 6.0 Kgs |
| Vibration Test | With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis |
| Shock Test | With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms |
| IP Rating | Front IP65 |
| System Fan | Fanless |
| Construction - Front | White Plastic |
| Construction - Rear | White Plastic |
| Finishing | Anti-Microbial |
| Fanless | Yes |
| Color | White |
| Software Support | |
| OS Information | Win10 64bit, Win11, Linux |
| Ordering Information | |
| Ordering Information | HID-2138-114-A1R HID 21.5/i5-1145G7E/8GRAM/NFC/2USB/2USBTypeC/2LAN, 19V Medical Adapter RCC-HID-WIFI-01R WIFI Dongle for HID-2138 RCC-HID-BCSCAN-01R Barcode Scanner Kit for HID Series ACC-ARM-D41R VESA Stand 75/100 CA-MT01-07 White ACC-ARM-D49R HID Black Stand VESA 100x100/ 75x75 Power Cord: EU E170203183DR US E1702031835R JP E170203183BR UK E170P060370R AU E1702031800R |
