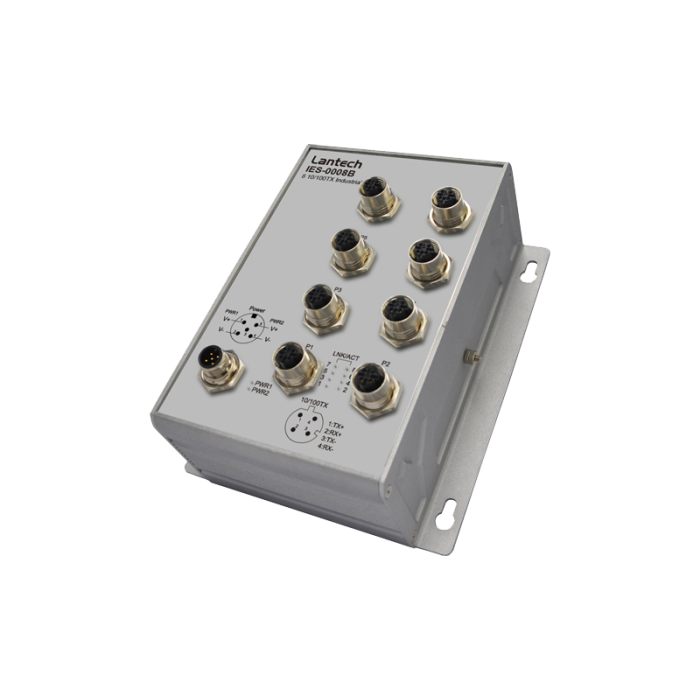

IES-0008B - 8 port M12 unmanaged switch

In stock

SKU

IES-0008B

Brand: Lantech

- EN50155/50121-3-2/50121-4 and EN45545-2 R24/R25 Fire & Smoke certificate
- E-mark certificate for vehicle
- Provides M12 connector with IP41 rated protection

Enquire Now

Enquire about this product:

Name

Phone

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

_{IEEE Standard}	_{IEEE802.3 10BASE-T Ethernet} _{IEEE802.3u 100BASE-T Ethernet} _{IEEE802.3x Flow Control and Back Pressure}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port}
_{Mac Address}	_{8K MAC address table}
_Connector	_{10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function} _{Power connector: 1 x M12, 5-pole A-coded, Male}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green),} _{Ethernet: Link/Activity (Green)}
_{Power Supply}	_{Dual power input 9.5~60VDC (12V model)} _{Dual power input 50.4~90VDC (72V model)}
_{Power Consumption}	_6Watts
_{Operating Humidity}	_{5% to 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C ~ 75°C (-40°F ~ 167°F)}
_{Storage Temperature}	_{-40°C ~ 85°C (-40°F ~ 185°F)}
_{Case Dimension}	_{Aluminum case, IP-41} _{135mm(W)x165mm(H)x62mm(D)}
_Weight	_700g
_Installation	_{Din Rail**, Wall Mount Design}
_EMC	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8 (Magnetic Field),} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC61373 (Shock), EN61373 (Shock and Vibration)}
_{Certificates & Report}	_{EN50155/EN50121-3-2/EN50121-4 Certificate} _{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate} _{E-mark certificate}
_Warranty	_{5 years}

Downloads

Product Data Sheet

IES-0008B - 8 port M12 unmanaged switch

IEEE Standard

IEEE802.3 10BASE-T Ethernet IEEE802.3u 100BASE-T Ethernet IEEE802.3x Flow Control and Back Pressure

Transfer Rate

14,880pps for Ethernet port 148,800pps for Fast Ethernet port

Mac Address

8K MAC address table

Connector

10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function Power connector: 1 x M12, 5-pole A-coded, Male

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), Ethernet: Link/Activity (Green)

Power Supply

Dual power input 9.5~60VDC (12V model) Dual power input 50.4~90VDC (72V model)

Power Consumption

6Watts

Operating Humidity

5% to 95% (Non-condensing)

Operating Temperature

-40°C ~ 75°C (-40°F ~ 167°F)

Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)

Case Dimension

Aluminum case, IP-41 135mm(W)x165mm(H)x62mm(D)

Weight

700g

Installation

Din Rail**, Wall Mount Design

EMC

FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8 (Magnetic Field), CE EN61000-6-2, CE EN61000-6-4

Stability Testing

IEC61373 (Shock), EN61373 (Shock and Vibration)

Certificates & Report

EN50155/EN50121-3-2/EN50121-4 Certificate EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate E-mark certificate

Warranty

5 years
