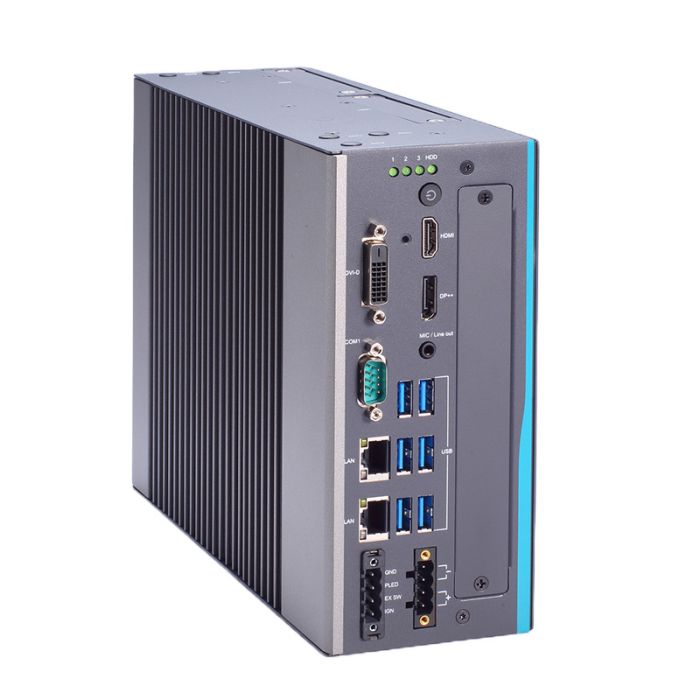

IPC960A Fanless Industrial Computer 13th/12th Gen
LGA1700 Socket 13th/12th Gen Core i7/i5/i3/Celeron Processor, H610E/Q670E, Front-access I/O
Key Features:
- Fanless embedded system
- Optional extension system I/O module
- Optional 5G network (Q670E)
- Intelligent power management: Ignition, USB power on/off control
- Supports Intel RAID (Q670E)
- EN61000-6-2 certified
- Optional DIN-rail, bookshelf, and wall mount kits
Intelligent Power Management

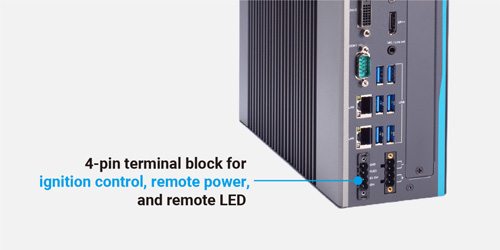

The IPC960A has one 4-pin terminal block for DC input and one 4-pin terminal block for ignition control, remote power, and remote LED.
Ready for Extensive Storage Needs

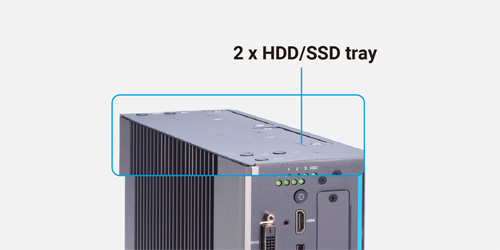

By supporting two 2.5" HDD/SSD and one optional M.2 Key M 2280 socket (PCIe x4 Gen4), the high-performance IPC960A delivers sufficient storage for massive data processing.

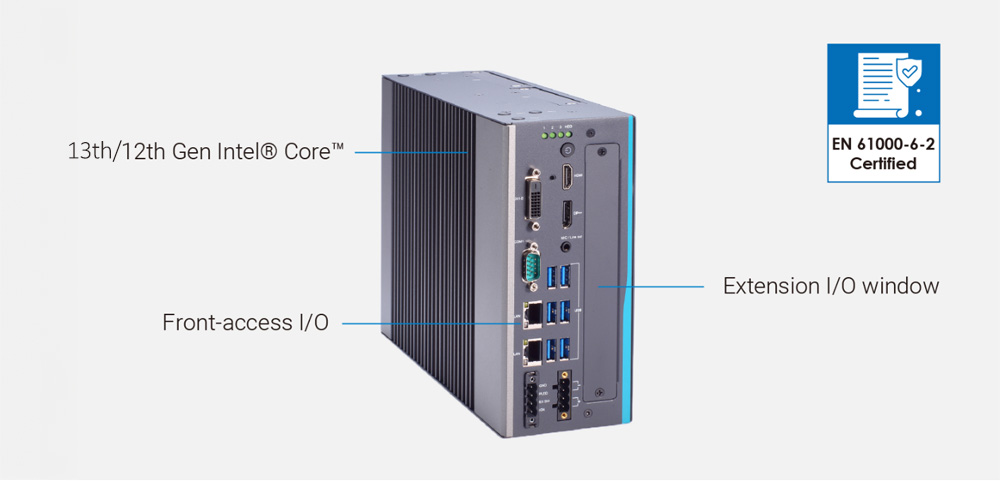

Industrial Edge System featuring Extension I/O Modules
The highly expandable IPC960A is powered by the 13th/12th gen Intel® Core™ processor with the Intel® H610E/Q670E chipset. Certified to EN 61000-6-2 regulations, the IPC960A offers a durable design, longevity of product life cycle, and high immunity for heavy-loading industrial environments. With fast and flexible deployment capabilities, this highly adaptable industrial computer can quickly and efficiently respond to changes or new circumstances for diverse applications in AI, vision inspection, objective classification, and factory automation.
Next-Gen Performance
The IPC960A is powered by the 13th/12th gen Intel® Core™ processor with the Intel® H610E/Q670E chipset. It is equipped with dual DDR5 4800/4000 SO-DIMM for up to 64GB of system memory.
Flexible Expansion Options
The IPC960A offers one optional I/O expansion module slot and I/O module options include Axiomtek’s AX93511, AX93512, AX93516, AX93519, MIO160, and MIO530.
Front-Facing I/O Interfaces
The IPC960A supports rich I/O options, including one 2.5GbE LAN port, one GbE LAN port, one RS-232/422/485, six USB 3.2 Gen2x1 (10G) ports, one internal USB 2.0 port, one DisplayPort++, one HDMI, one DVI-D.
Rugged & Reliable Design
The IPC960A has a wide operating temperature range of -20°C to +60°C and a wide range of power input from 18 to 36 VDC for operation in mission-critical environments.
|
CPU |
|
|
Chipset |
|
|
System Memory |
|
|
BIOS |
|
|
COM |
|
|
USB |
|
|
Ethernet |
|
|
Display |
|
|
Digital I/O |
|
|
Audio |
|
|
Storage |
|
|
Expansion |
|
|
Others |
|
|
Power |
|
|
Construction |
|
|
Operating Temperature |
|
|
Relative Humidity |
|
|
Dimensions |
|
|
Weight (net/gross) |
|
|
Software Support |
|
|
EOS Support |
|
|
Certifications |
|
You have to IPC960A-H-F5 (P/N-E26G960A01)
Industrial system with Intel® H610E and blank extension system I/O cover
IPC960A-Q-F5 (P/N-E26G960A00)
Industrial system with Intel® Q670E and blank extension system I/O cover; without Axiomtek logo
AX93511 (P/N-E29R127101)
4 x RS-232/422/485 module (default RS-232)
AX93512 (P/N-E29R127102)
2 x RS-232/422/485 with 1.5kVDC isolation and 8-in/8-out DIO module with 1.5kVDC isolation
(project-based support)
AX93516 (P/N-E29R127103)
4 x RS-232/422/485 with 2kVDC isolated module (project-based support)
AX93519 (P/N-E29R127104)
1 x GbE LAN + 2 x RS-232/422/485 + 2 x USB module
MIO160 (P/N-E39Q160100)
6 x Serial port (4-wire RS-232; TX/RX/RTS/CTS), RS-422/485 with 1.5kVDC isolation and 2 CANbus ports with 1.5kVDC isolated module (with support for the CAN 2.0A and CAN2.0B protocol)
MIO530 (P/N-E39Q530100)
1 x M.2 Key E 2230 socket + 1 x M.2 Key B 3042/3050/3052/3060 socket with SIM slot for 5G module or selected LTE module (Q670E) (project-based support)
2.5” SATA HDD/SSD
DDR Ｍemory
DDR5 4800/4000 MT/s un-buffered SO-DIMM, up to 64GB
E29R127110
Wall mount bracket kit
E29R127106
DIN-rail kit
E29R127105
Bookshelf kit (project-based support)
509000001500
120W wire adapter
50906A24000E
230 wire adapter
