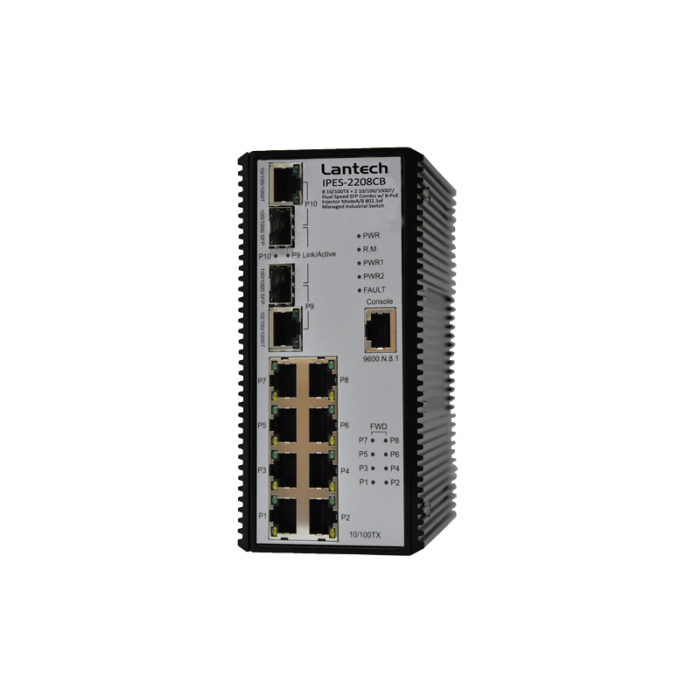

IPES-2208CB - 8 port SFP PoE switch

In stock
SKU
IPES-2208CB
Brand: Lantech

- Pro-Ring IIse for self-recovery ring in 20ms
- Support PoE Plus 802.3at/af; 240W PoE budget;12V~48V input (12V model)
- PoE management incl. Detection, Delay and Scheduling

Enquire Now
Enquire about this product:

IEEE Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.3af /at Power over Ethernet
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.1x User Authentication (Radius)
IEEE802.1ab LLDP

Switch Architecture

Back-plane (Switching Fabric): 5.6Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Fiber Ethernet port

Packet Buffer

1Mbits

MAC Address

8K MAC address table

Flash ROM

4Mbytes

Connectors

10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function
10/100/1000T/SFP Combo port: 2 x RJ-45 + 2 x 100/1000 SFP socket with DDM***
RS-232 connector: RJ-45 type

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

Optical Fiber

1.25Gbps:
Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
125Mbps:
Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm)
Single mode: 0 to 30 km, 1310 nm (62.5/125 μm)
WDM 1.25Gbps:
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 125Mbps:
Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)

Protocol

CSMA/CD

PoE pin assignment

RJ-45 port # 1~# 8 support 802.3at/af End-point,
Alternative A mode. Per port provides up to 30W@54V capability.
Positive (VCC+): RJ-45 pin 1,2.
Negative (VCC-): RJ-45 pin 3,6.

PoE input voltage & Power feed voltage

Input V

Active Mode A /Output V

12V~56V

48V/54V@15W/30W(IPES-2208CB-12V)

45~56V(af)

48V@15W

53~56V(at)

54V@30W

LED

Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green)
8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow)
SFP port: LNK/ACT(Green), 1000T: LNK/ACT(Green), 1000M(Green)

Power Supply

PoE input 48V/54VDC; 12V~54V(IPES-2208CB-12V);  Redundant power connective removable terminal block for master and slave power

Overload current protection

Present

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

Standard: -20°C~60°C / -4°F~140°F
Wide Operating Temperature for E models:
-40°C~75°C / -40°F~167°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Case Dimension

IP-30, 74(W) x 114.3 (D) x 152 (H) mm

Weight

850 g

Fan Number

0

Installation

Wall mount or DIN-type cabinet install

EMI & EMS

FCC Class A, CE EN61000-4-2,
CE EN61000-4-3, CE EN61000-4-4,
CE EN61000-4-5, CE EN61000-4-6,
CE EN61000-4-8, CE EN61000-4-11,
CE EN61000-4-12, CE EN61000-6-2,
CE EN61000-6-4

Safety

UL 60950

Stability Testing

IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

Power Consumption

9.86 W (no PoE load) for Ethernet data at full load

PoE Power Budget

240W @48VDC; 120W @24VDC; 90W @12VDC

Warranty

5 years
