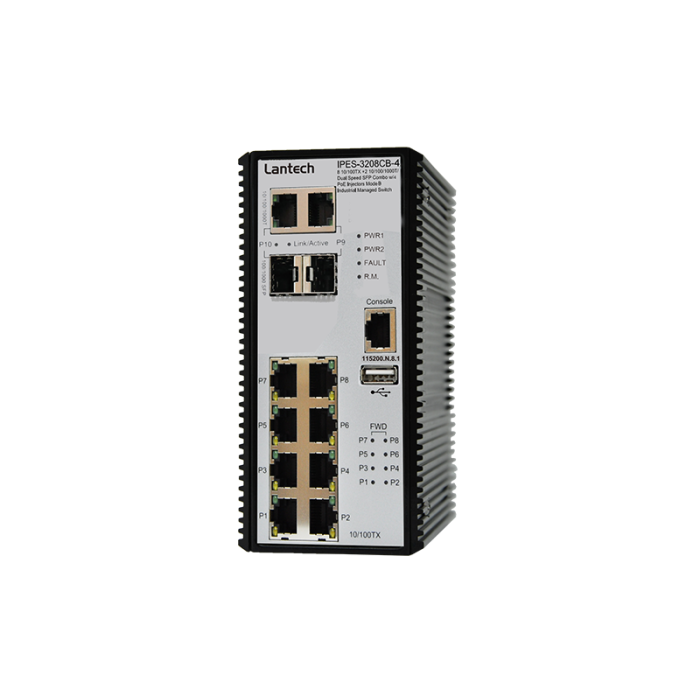

IPES-3208CB-4 - 10 port managed switch

In stock

SKU

IPES-3208CB-4

Brand: Lantech

- Support 4 x passive PoE Mode B
- PoE management incl. Detection and Scheduling
- Single G.8032 ring protection < 20ms with auto configuration

Enquire Now

Enquire about this product:

Name

Phone

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

_Standards	_{IEEE802.3 10Base-T Ethernet} _{IEEE802.3u 100Base-TX} _{IEEE802.3ab 1000Base-TX Ethernet} _{IEEE802.3z Gigabit fiber} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3ad Port trunk with LACP} _{IEEE802.1d Spanning Tree} _{IEEE802.1w Rapid Spanning Tree} _{IEEE802.1s Multiple Spanning Tree} _{IEEE802.3ad Link Aggregation Control Protocol (LACP)} _{IEEE802.1AB Link Layer Discovery Protocol (LLDP)} _{IEEE802.1X User Authentication (Radius)} _{IEEE802.1p Class of Service} _{IEEE802.1Q VLAN Tag} _{IEEE802.3at/af Power over Ethernet}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 5.6Gbps}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Fiber Ethernet port}
_CPU	_{Marvell 800Mhz}
_RAM	_{256M Byte}
_Flash	_{128M Byte}
_{Mac Address}	_{8K MAC address table}
_{Jumbo frame}	_{9KB on all ports}
_Connectors	_{10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function} _{10/100/1000T/SFP Combo port: 2 x RJ-45 + 2 x 100/1000 SFP socket with DDM} _{RS-232 connector: RJ-45 type} _{USB for configuration editable restore/backup} _{Power & P-Fail connector: 1 x 6-pole terminal block} _{DIDO : 1 x 6-pole terminal block}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_{Optical Cable}	_1.25Gbps: _{Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)} _{Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)} _125Mbps: _{Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm)} _{Single mode: 0 to 30 km, 1310 nm (62.5/125 μm)} _{WDM 1.25Gbps:} _{Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)} _{WDM 125Mbps:} _{Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)} _{Ethernet port: Link/Activity (Green), Speed (Green); Mini-GBIC: Link/Activity (Green)}
_DI/DO	_{2 Digital Input (DI) :} _{Level 0: -30~2V / Level 1: 10~30V} _{Max. input current:8mA} _{2 Digital Output(DO): Open collector to 40 VDC, 200mA}
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{-20°C~60°C / -4°F~140°F (Standard model)} _{-40°C~75°C / -40°F~167°F(-E model)}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Power Supply}	_{12V/24VDC/48VDC}
_{PoE Budget}	_{15W @/12V or 24V input} _{30W @/48V input}
_{PoE pin assignment}	_{RJ-45 port # 5,6,7,8} _{Alternative B mode provides up to 30W/48V; 15W/24V} _{Positive (VCC+): RJ-45 pin 4,5.} _{Negative (VCC-): RJ-45 pin 7,8.}
_{Power Consumption}	_10W
_{Case Dimension}	_{Metal case. IP-30,} _{74 (W) x 114 (D) x 152 (H) mm}
_Weight	_{900 g}
_Installation	_{DIN Rail and Wall Mount** Design}
_{EMI & EMS}	_{FCC Class A,} _{CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock),} _{IEC60068-2-6 (Vibration)}
_MTBF	_NA
_Warranty	_{5 years}

Downloads

Product Data Sheet

IPES-3208CB-4 - 10 port managed switch

Standards

Switch Architecture

Back-plane (Switching Fabric): 5.6Gbps

Transfer Rate

14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port

CPU

Marvell 800Mhz

RAM

256M Byte

Flash

128M Byte

Mac Address

8K MAC address table

Jumbo frame

9KB on all ports

Connectors

10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function 10/100/1000T/SFP Combo port: 2 x RJ-45 + 2 x 100/1000 SFP socket with DDM RS-232 connector: RJ-45 type USB for configuration editable restore/backup Power & P-Fail connector: 1 x 6-pole terminal block DIDO : 1 x 6-pole terminal block

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)

Optical Cable

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) Ethernet port: Link/Activity (Green), Speed (Green); Mini-GBIC: Link/Activity (Green)

DI/DO

2 Digital Input (DI) : Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 2 Digital Output(DO): Open collector to 40 VDC, 200mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

12V/24VDC/48VDC

PoE Budget

15W @/12V or 24V input 30W @/48V input

PoE pin assignment

RJ-45 port # 5,6,7,8 Alternative B mode provides up to 30W/48V; 15W/24V Positive (VCC+): RJ-45 pin 4,5. Negative (VCC-): RJ-45 pin 7,8.

Power Consumption

10W

Case Dimension

Metal case. IP-30, 74 (W) x 114 (D) x 152 (H) mm

Weight

900 g

Installation

DIN Rail and Wall Mount** Design

EMI & EMS

FCC Class A, CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11

Stability Testing

IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

MTBF

NA

Warranty

5 years
