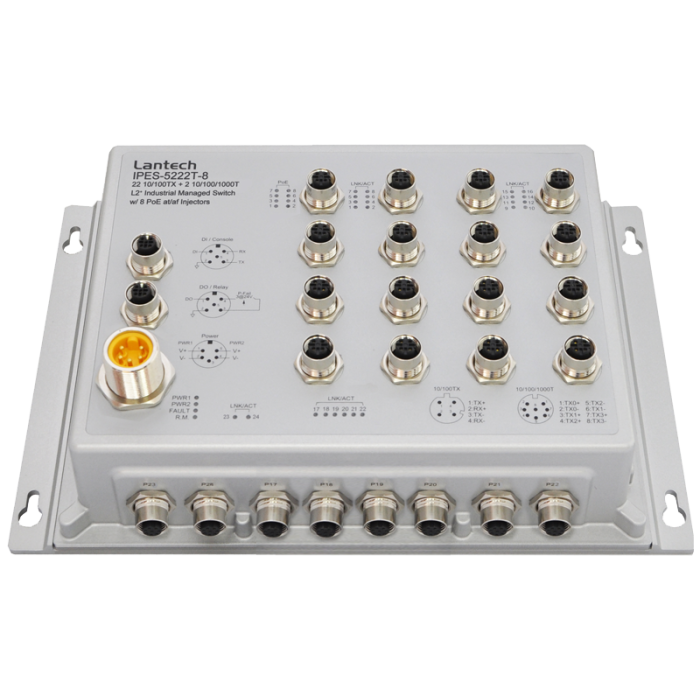

IPES-5222T-8

In stock
SKU
IPES-5222T-8
Brand: Lantech

Model Code: IPES-5222T-8

- EN50155/61373/45545-2 certified; Optional 12V / 72V input voltage
- Up to 8x PoE 10/100TX at/af ports w/PoE management
- Enhanced G.8032 ring protection < 20ms with easy configuration; Train ring for dynamic coupling ring; Aggregation ring*

Enquire Now
Enquire about this product:

Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000BaseT
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af PoE

Switch Architecture

Back-plane (Switching Fabric):8.4Gbps
Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Fiber Ethernet port

CPU

Marvell 800Mhz

RAM

256M Byte

Flash

128M Byte

Mac Address

16K MAC address table

Jumbo frame

9KB on all ports

Connector

10/100TX: 22 x M12 4-pole D-coded with auto MDI/MDI-X function
10/100/1000T: 2 x M12 8-pole A-coded with auto
MDI/MDI-X function
RS-232 connector: 1 x M12 5-pole A-coded
Power Input connector : 1 x M23 5-pole A-coded
Relay contact : 1 x M12 5-pole A-coded

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E cable
EIA/TIA-568 100-ohm (100m)

Protocol

CSMA/CD

PoE Budget

240W for 45~56V input
(55V input is recommended for 802.3at 30W applications)
120W for 12V input
120W for 72V Input

PoE pin assignment

M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.

Bypass Protection**

High-speed optical switching (<4ms)
Minimal insertion loss (Max 1.6dB as Bypass Mode)

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)
Ethernet port: Link/Activity (Green), Speed (Green); GigaT: Link/Activity (Green)

DI / DO

1 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
1 Digital Output(DO): Open collector to 40 VDC, 200mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C~75°C / -40°F~167°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Standard model:33.6~60VDC dual input
12V model: 9.5~60VDC dual input
72V model: 50.4~90VDC dual input

Power Consumption

Max. 13W 12V~48VDC input
Max. 16W 72VDC

Case Dimension

IP67 model: Aluminum case
285mm(W)x201.4mm(H)x77.6mm(D)

Weight

2.1kgs(IP67)

Installation

DIN Rail** and Wall Mount Design

EMI & EMS

FCC Class A,
CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11

Stability Testing

IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)

MTBF

n/a

Certifications& report

EN50155/EN50121-3-2/EN50121-4 Certificate
EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate

Warranty

5 years
