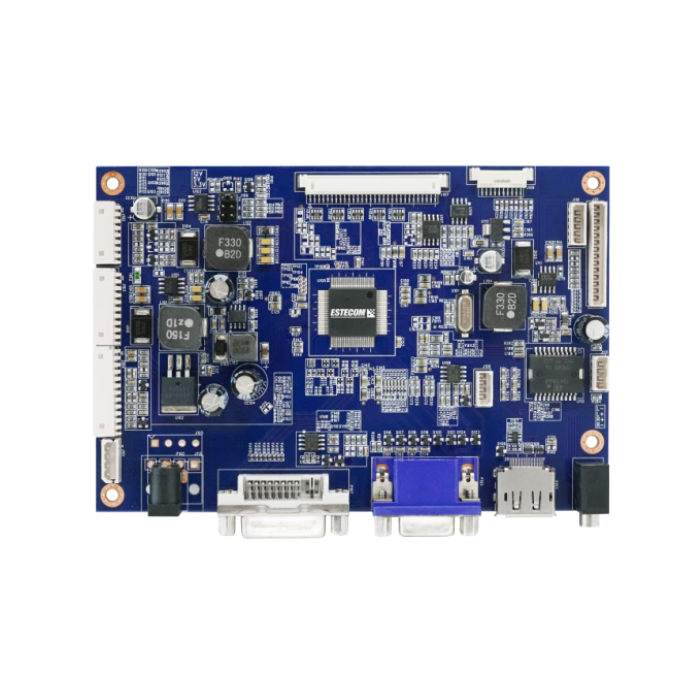

Marigold-D
Multi-purpose LCD controller
150mm x 120mm
VGA, DVI, DP
WUXGA @ 60Hz
Marigold-D is an advanced Industrial grade TFT-LCD Monitor Control Board. Supporting Frame Buffer function. This design Enables a full conventional CRT monitor and/or video replacement with a large size Active Matrix LCD module. Marigold-D can support UART communication through Displayport cable. It is suitable for video resolution up to UXGA(1920x1200 @ 60Hz) in all video modes, the full display area of the module is used. The design is implemented as a single printed circuit
Board Dimension
150x 120mm
Input Signal
RGB , DVI, Displayport
Output Signal
2CH LVDS
Maximum Resolution
1920x 1200 @60Hz
Local Control
OSD (On Screen Display) and IR
Remote Control (UART)
RS-232, Displayport AUX channel.
Operating Temperature
-20°C ~70°C
Humidity
8% ~ 90%
Input Power Voltage
+24VDC or +12VDC
Storage Temperature
-30°C ~80°C
