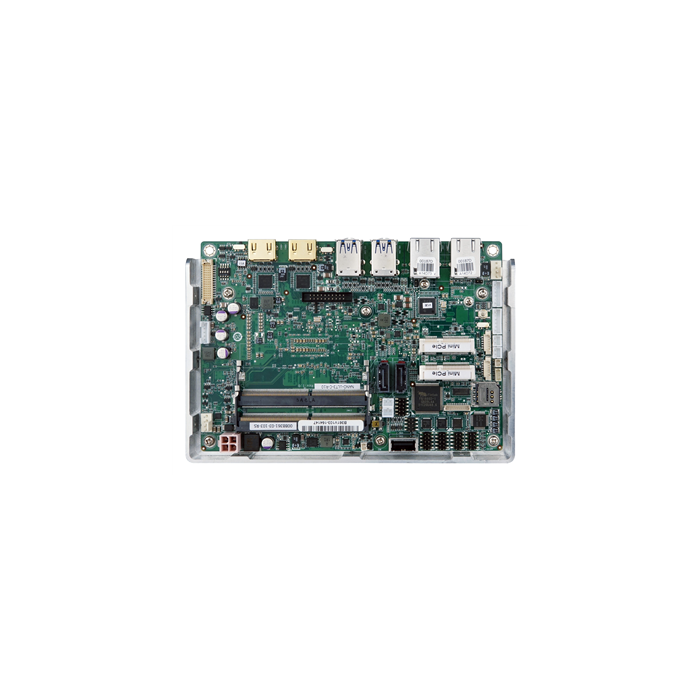

NANO-ULT3 EPIC SBC 6th Gen i7/i5/i3/Celeron

In stock
SKU
NANO-ULT3-xx-R10

EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)

Enquire Now
Enquire about this product:

EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)



·         EPIC SBC with 6th generation Intel® ULT proccessor supports dual-channel DDR4 SODIMMs

·         Triple independent display support

·         Easy assembly heat spreader for thermal management

·         Full-size PCIe Mini slot with SIM sockets for 3G/LTE expansion

·         COM, USB 3.0, SATA 6Gb/s, mSATA, eMMC 5.0 and audio support

·         IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Spec Item Description
CPU Cooler
CPU Cooler N/A
Display
Display Triple independent display
2 x HDMI (up to 4096x2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -20°C ~ 60°C
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot
I/O Interface
Audio Realtek ALC662 HD codec
1 x Analog audio (2x5 pin)
Digital I/O 1 x 8-bit digital I/O (2x5 pin)
Ethernet LAN1: Intel® I219-LM PHY with Intel® AMT 11.0 supported
LAN2: Intel® I211-AT PCIe GbE controller
I/O Interface
I/O Interface 4 x USB 3.0
3 x Internal USB 2.0
Power
Power consumption 12V@2.48A (Intel® Core™ i3-6100U CPU with two 8 GB memory)
Storage
Storage 1 x 8 GB eMMC (optional)
2 x SATA 6G/s with 5V SATA power connector (RAID 0,1)
System
CPU 6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
Memory Max. Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)
Watchdog Timer
Watchdog Timer Software programmable supports 1~255 sec. system reset
