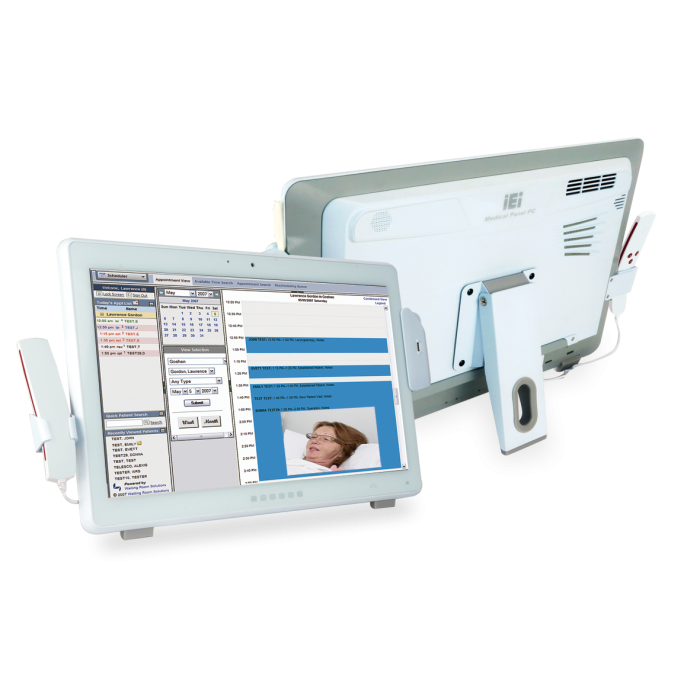

POC-W22A-H81 21.5" Medical Panel PC

End of Life
In stock
SKU
POC-W22A-H81-R10

21.5” 250cd/m² FHD medical panel PC with Intel® H81 chipset, Intel® Pentium® G3320TE processor (dual core, 2.3 GHz, TDP 35W), two 2 GB DDR3 RAM, 802.11a/b/g/n/ac Wi-Fi module, projected capacitive touchscreen, 2M camera, microphone, support iRIS-2400

Enquire Now
Enquire about this product:

·         W21.5” 16:9 LED panel with FHD (1920 x 1080)

·         4th generation Intel® Core™ i5/i3/Pentium® CPU

·         Projected capacitive touchscreen supports multi-touch

·         IP65 compliant front bezel

·         Anti-bacteria cover

·         Optional 3-in-1 card reader: MSR, SCR and fingerprint

·         Optional Mifare RFID module

·         Optional internal 54W battery module

·         Optional VoIP phone handset

·         Optional handle module with barcode scanner and reading light

Spec Item Description
Communication
Wi-Fi 802.11a/b/g/n
Dimensions
Dimensions 470 x 383 x 79
Environment
IP Level IP 65 compliant front panel
Operating Temperature 0°C ~ 40°C
I/O Interface
Audio 2 x 3W AMP
I/O Ports 1 x RS-232/422/485
2 x GbE LAN by RJ-45 (1 for iRIS)
1 x Power button
1 x VGA output
1 x HDMI output
1 x 9V~28V DC Jack
2 x USB 3.0
4 x USB 2.0 (2 on bottom and 2
LCD
Backlight MTBF 30000
Brightness (cd/m2) 250
Contrast Ratio 1000:1
LCD Color 16.7M
Resolution 1920 (W) x 1080 (H)
Size 21.5"
Viewing Angle (H-V) 170°/160°
Physical Characteristics
Construction Anti-bacteria plastic front frame
Mounting Panel, Wall, Rack, Stand and Arm
VESA 100mm x 100mm
Net Weight 7.3 kg
Power
Power adapter Medical Grade. AC 90V~264VAC input to DC 12V output
Power Requirement DC 12V input
System
Chipset Intel® H81
CPU Intel® desktop Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® H81 chipset (Up to TDP 35W CPU)
Drive Bays 1 x 2.5” SATA HDD
Memory Max. Two 204-pin 1600/1333MHz dual-channel DDR3 SDRAM, 4GB pre-installed (system max.16GB)
Touch
Touch Screen Projected Capacitive Touch screen
LED Function
LED Function One power on/off LED on front panel
OSD Function
OSD Function Five buttons (LCD on/off, Light +/-, Audio +/-)
