Embedded Single Board Computers (SBCs) are available in a range of form factors, CPU and IO options to suits a wide variety of applications.

Ranging from the smallest PICO to ATX are built with IO connectors direct to the PCB.

COM Express, SMARC and Q7 sized System on Modules (SOMs) are designed to plug into a carrier board via a high density connector and the IO are then provided from the carrier board. PICMG are suitable for backplane based designs in rack systems.

Tekdis LLC offers a wide selection of all form factors of Embedded Single Board Computers and can build complete solutions to suit customer requirements. We have the experience and know how to select the correct storage, communication modules (LTE, WLAN) and can license/image with operating systems prior to shipping.

Filter
Category
CPU
# LAN Ports
Features

34 Results Shown

Page
per page
Set Descending Direction

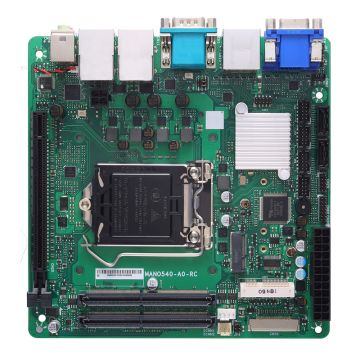

  1. MANO540 - Mini-ITX SBC 10th Gen Core™ i9/i7/i5/i3
    MANO540 - Mini-ITX SBC 10th Gen Core™ i9/i7/i5/i3

    10th Gen Core™ i9/i7/i5/i3 DisplayPort++, HDMI, VGA, eDP, USB 3.2, M.2 and Dual GbE LAN

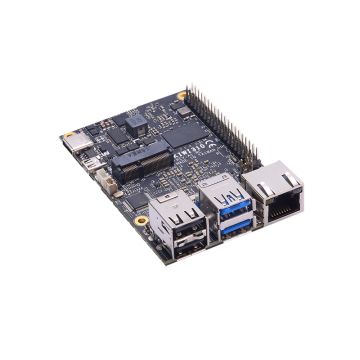

  2. KIWI310 - 1.8" SBC Celeron® N3350
    KIWI310 - 1.8" SBC Celeron® N3350

    1.8" SBC with Intel® Celeron® Processor N3350, Micro HDMI, 1 GbE LAN, 2 USB3.0 and 40-pin GPIO

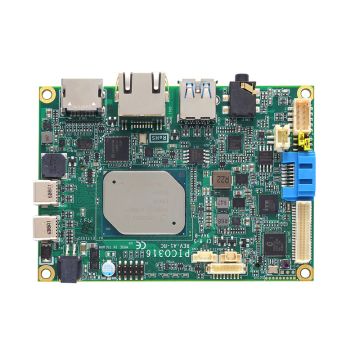

  3. PICO317 - Pico-ITX SBC Atom® x5-E3940
    PICO317 - Pico-ITX SBC Atom® x5-E3940

    Pico-ITX SBC with Intel® Atom® x5-E3940 Processor, HDMI, LVDS, GbE LAN and Audio

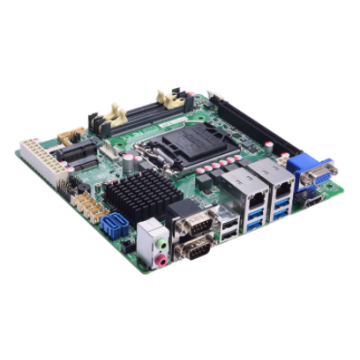

  4. MANO522 - LGA1151 8th Gen Intel® Core™ i7/i5/i3 Processor
    MANO522 - LGA1151 8th Gen Intel® Core™ i7/i5/i3 Processor

    Mini-ITX SBC with LGA1151 8th Gen Intel® Core™ i7/i5/i3 Processor, HDMI, VGA, LVDS, USB 3.2 Gen 1, mSATA, M.2 and Dual GbE LAN

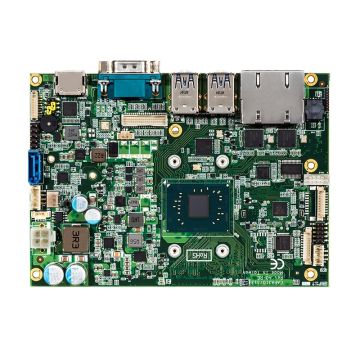

  5. CAPA313 - Pentium N4200/Celeron N3350
    CAPA313 - Pentium N4200/Celeron N3350

    3.5” Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, LVDS, HDMI, 2 GbE LANs and Audio

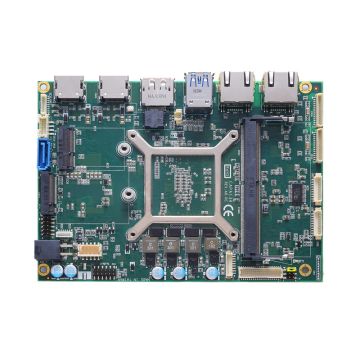

  6. CAPA13R - AMD RYZEN embedded V1807B APU
    CAPA13R - AMD RYZEN embedded V1807B APU

    3.5” Embedded SBC with AMD® RYZEN™ Embedded V1807B/V1605B APU, DisplayPort, 2 HDMI, LVDS and 4 GbE LAN

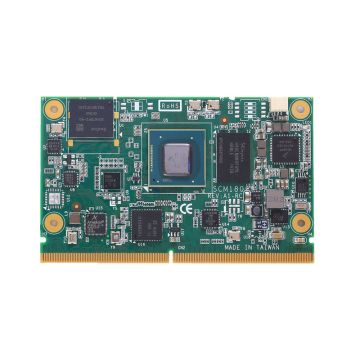

  7. SCM180 - SMARC 2.0 i.MX8M
    SCM180 - SMARC 2.0 i.MX8M

    SMARC v2.0 SoM with i.MX8M Quad/Dual 1.3 GHz (Industrial) SoC, 1GB/2GB Memory, 8GB eMMC, CAN, MIPI CSI/DSI, HDMI 2.0

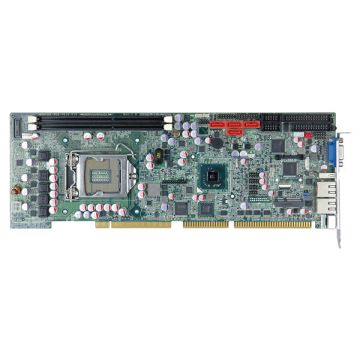

  8. WSB-H610
    WSB-H610

    Full-size PICMG 1.0 CPU Card supports 32nm LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® H61

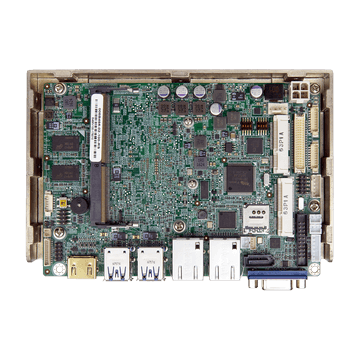

  9. WAFER-ULT4
    WAFER-ULT4

    3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support

  10. WAFER-ULT3
    WAFER-ULT3

    3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support

  11. WAFER-ULT-i1
    WAFER-ULT-i1

    3.5” SBC supports Intel® 22nm 4th/ 14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT), VGA/LVDS/iDP, Dual GbE, PCIe Mini, USB 3.0, SATA 6Gb/s Audio, iRIS-1010 and RoHS

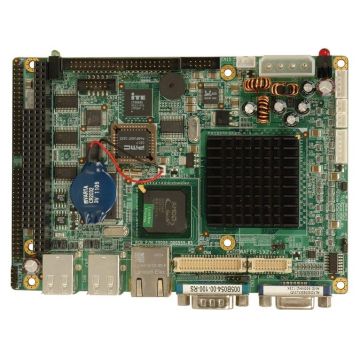

  12. WAFER-LX2-800
    WAFER-LX2-800

    3.5” SBC with on-board AMD Geode™ LX 800 Processor

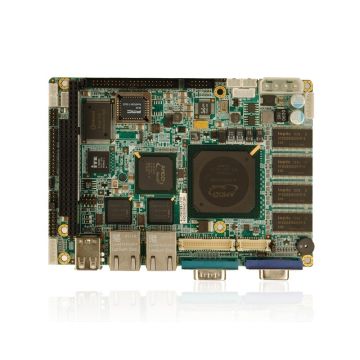

  13. WAFER-LX-800
    WAFER-LX-800

    3.5” SBC with on-board AMD Geode™ LX 800 Processor

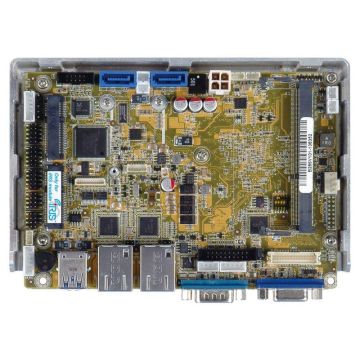

  14. WAFER-KBN-i1
    WAFER-KBN-i1

    3.5” SBC supports AMD® Embedded G-Series SoC

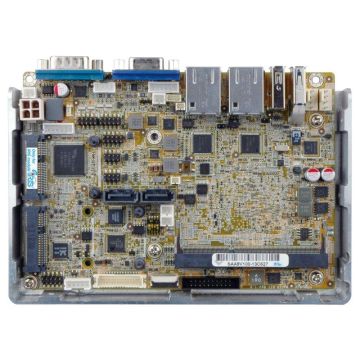

  15. WAFER-BT-i1
    WAFER-BT-i1

    3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, WAFER-BT-i1 mSATA, COM, Audio and RoHS

  16. WAFER-BT-E38001W2
    WAFER-BT-E38001W2

    3.5” SBC with Intel® 22nm Atom™ SoC

  17. SPCIE-C2260-i2
    SPCIE-C2260-i2

    Full-size PICMG 1.3 CPU Card supports LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® and Celeron® with Intel® C226, DDR3

  18. PM-LX2
    PM-LX2

    AMD Geode™ LX 800 CPU on-board PC/104 Module

  19. PM-LX
    PM-LX

    PCI-104 Module with on-board AMD Geode™ LX 800 CPU

  20. PEAK 887VL2
    PEAK 887VL2

    PICMG 1.3 Full-size SBC with Intel® Q87 Support 4th Generation Intel® Core™ i7/i5/i3 Processors

  21. PCISA-BT
    PCISA-BT

    Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA

  22. PCIE-Q870-i2
    PCIE-Q870-i2

    Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87

  23. PCIE-H810
    PCIE-H810

    Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81

  24. NANO-ULT3
    NANO-ULT3

    EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)

34 Results Shown

Page
per page
Set Descending Direction



Embedded Single Board Computers (SBCs)

Available in a range of form factors with CPU and IO options, embedded single board computers (SCBs) are useful for many applications. Options include PICO, ATX, COM Express, SMARC, Q7-sized systems on modules, and more.

Plug COM Express, SMARC, and Q7-sized systems on modules into a carrier board with the high-density connector and the board will provide the IO. Also, use the PCMG for backplane-based designs in rack systems.




Types of CPU

ARM-Based

Featuring fewer transistors, ARM-based CPUs are low-cost, consume less power, and create less heat. Because of these features, they are lightweight, portable, and great for battery-powered devices. Tekdis offers ARM-based modules and single-board computers that support both Linux and Android OS.

AMD/Nvidia

For complex graphic applications like gaming and digital signage, AMD offers high-performing GPU solutions. Nvidia is also a leading supplier of x86 CPUs and chipsets for robotics, advanced driver advisory systems, license plate recognition technology, and intelligent machines.

Atom/Celeron/Pentium

Intel Atom processors are ideal for small and compact computing needs, including smartphones, tablets, and other internet-enabled mobile devices. For next-level performance, Celeron and Pentium are great alternatives. They feature improved graphics but are still economical.

i3/i5/i7

i3 processors have two cores and perform specific functions for targeted applications. Core i5 processors have four to six cores and are mid-tier processors. Core i7 has as many as eight cores and features the highest specs. The higher the number of cores, the higher the clock speed, which improves overall performance. i5 and i7 are used for more extensive processing, decoding, and graphics performance. While i3 and i5 require a Windows IOT Value license, i7 requires a high-end license.

Xeon

Xeon processors are some of the highest quality in the industry. They have the most cores and the highest clock speeds as a result. This Intel brand of x86 microprocessor supports error-checking and correcting memory, perfect for non-consumer workstations, servers, and embedded applications.




Brands Used for Embedded PCS/Computers

Tekdis offers embedded computing boards from two manufacturers: Axiomtek and IEI Technology. These two manufacturers are some of the most respected in Taiwan.

Axiomtek

Axiomtek was developed in 1990. Today, their innovative designs are recognised all over the world. For reliable, state-of-the-art computing solutions, there is no better supplier. They take great pride in their products and it shows. As the leading designer and manufacturer of industrial computers and embedded field, they offer a wide range of solutions, including:

  • Embedded board
  • System on module
  • Single board computer
  • Embedded system
  • Industrial barebone
  • Network appliance
  • Touch panel computer
  • Human-machine interface
  • Medical PC
  • Industrial network
  • Digital signage

IEI Technology

Ideal for computer-based applications, IEI technology works in alliance with Intel, Microsoft, and Amazon to offer a variety of devices, systems, applications, and more to the industrial computing industry. They strive to make advanced technology convenient and easy to use for all. IEI Technology products can be used for computer-based applications such as:

  • Factory automation
  • Computer telephony integration
  • Networking appliances
  • Security
  • Systems

It is also popular in fields like:

  • Artificial intelligence
  • The internet of things
  • National defense
  • Emergency services
  • Transportation
  • Communication base stations
  • Medical instruments.



Features of Embedded PCS/Computers

Fanless

In an industrial setting where excessive dust and dirt circulate through the air, fanless PCs are essential. Instead of using cooling fans, heat is conducted through the case or through the airflow over the machine. This protects the machine from dust, prolonging its life, and it also makes for silent operation. Tekdis has a growing offering of fanless options that are great for digital signage, industrial automation, mobile computing, and medical applications.

Android Powered

Android is a popular operating system for mobile phones and tablets. Android also features in the panel PC and embedded computing market as a secure and reliable operating system. Tekdis offers a range of embedded boards, embedded computers and panel PCs based on ARM based CPUs running Android OS.
