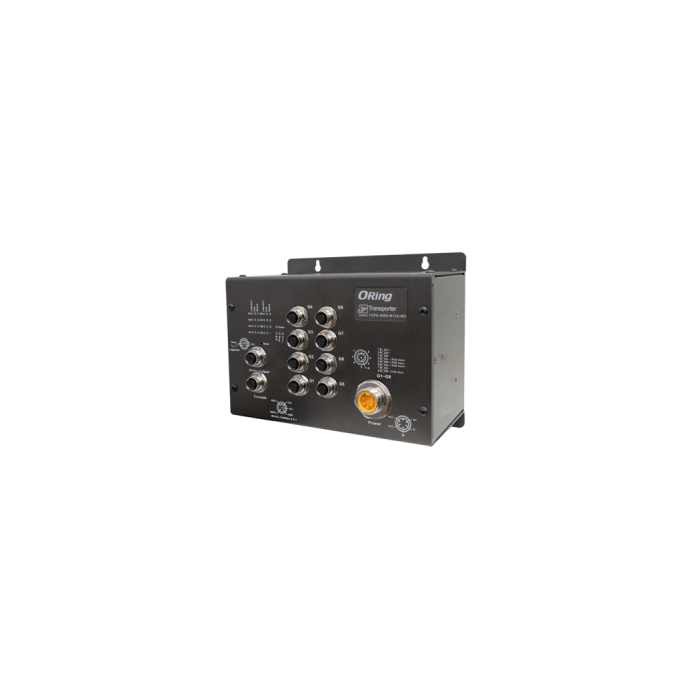

TGPS-9080-M12A-MV EN50155 8-port managed PoE Ethernet switch

In stock
SKU
TGPS-9080-M12A-MV
Brand: ORing

EN50155 8-port managed Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. with A-coded M12 connector, 110VDC power Input

Enquire Now
Enquire about this product:
  • Leading EN50155-compliant Ethernet switch for rolling stock application
  • Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings
  • *note Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
  • Supports IEEE 802.3at compliant PoE and total power budget is 60 Watts with maximum 30Watts per port
  • Support PoE scheduled configuration and PoE auto-ping check function
  • Support IEEE 1588v2 clock synchronization
  • Support IPV6 new internet protocol version
  • Support Modbus TCP protocol
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DOS/DDOS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support ACL and 802.1x User Authentication for security
  • Support DBU-01 (Data backup unit for easy configuration backup)
  • Supports 9.6K Bytes Jumbo Frame
  • Multiple notification for warning of unexpected event
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Wall mounting enabled
  • IP-40 housing design

*NOTE: This function is available by request onl

Physical Ports

10/100/1000Base-T(X) with P.S.E.Ports in M12 Auto MDI/MDIX

8 (8-pin A-coding)
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)

MAC Table 8K
Priority Queues 8
Processing Store-and-Forward
Switch Properties

Switching latency: 7 us
Switching bandwidth: 16Gbps
Max. Number of Available VLANs: 4095
IGMP multicast groups: 256 for each VLAN
Port rate limiting: User Define

Jumbo frame Up to 9.6K Bytes
Security Featues

Device Binding security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security

Software Features

STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping
IP-based bandwidth management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Server/Client/Relay
SMTP Client
Modbus TCP

Network Redundancy

O-Ring
O-Chain
*note MRP
MSTP

RS-232 Serial Console Port RS-232 in 5-pin M12 connector with optional console cable which can be purchased separately. 115200bps, 8, N, 1
LED Indicators
Power Indicator (PWR) Green : Power LED x 1
Ring Master Indicator (R.M.) Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)

Green : Indicates that the system operating in O-Ring mode
Green Blinking : Indicates that the Ring is broken.

Fault Indicator (Fault) Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) M12 Port Indicator

Top Green LED for port Link/Act indicator.
Middle Green LED for PoE enable indicator
Bottom dual color LED for Ethernet speed indicator : Green LED for 1000Mbps, Amber for 100Mbps, Off for10Mbps

Power
Input power

72/96/110VDC (50.4-154VDC). 7/8 inch 5-pin male connector

Power Consumption (Typ.)

13 Watts (power consumption of P.S.E. is not included)

Total PoE Output Power

60 Watts

Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristics
Enclosure IP-30
Dimensions (W x D x H) 205 (W) x 99 (D) x175 (H) mm
Weight (g) 1170 g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
EMS

IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11

Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty 5 years
