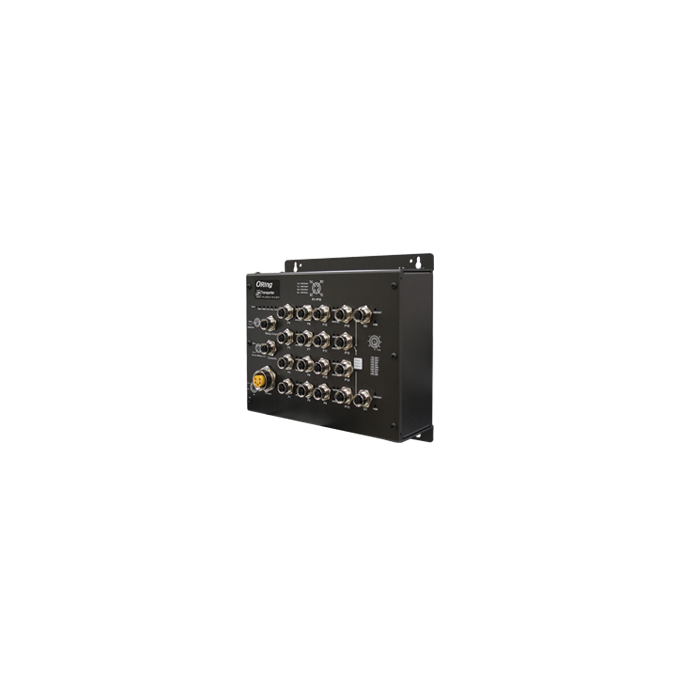

TPS-3882GT EN50155 18-port managed PoE Ethernet switch

In stock
SKU
TPS-3882GT-M12-xx
Brand: ORing

EN50155 18-port managed PoE Ethernet switch with 8x10/100Base-T(X) P.S.E., 8x10/100Base-T(X) and 2x10/100/1000Base-T(X), A-coded M12 connector and 1xbypass included, 24V power inputs

Enquire Now
Enquire about this product:
  • Leading EN50155-compliant Ethernet switch for rolling stock application
  • 8 ports P.S.E. fully compliant with IEEE802.3af standard, provide up to 15.4 Watts per port
  • World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
  • O-Chain support applications with multiple redundant rings topology
  • STP/RSTP:2004/MSTP supported
  • Support PTP Client (Precision Time Protocol) clock synchronization
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • SNMP v1/v2c/v3 support for secure network management
  • RMON for traffic monitoring
  • Support VLAN and LLDP protocol
  • DHCP assigns each Equipment IP by each Port
  • Provided Relay bypass function with two-gigabit ports
  • Event notification through Syslog, Email, SNMP trap, and Relay Output
  • Windows utility (Open-Vision) supports centralized management and configurable by Web-based, Telnet, and Console (CLI)
  • M12 connectors to guarantee reliable operation against environmental disturbances
  • Wall mounting enabled
  • Support IPV6 new internet protocol version
  • Provided HTTPS/SSH protocol to enhance network security
  • Support TACACS+ and 802.1x User Authentication for security
Physical Ports

10/100Base-T(X) Ports in M12 Auto MDI/MDIX with P.S.E.

8 x M12 female connector (4-pin D-coding)
10/100Base-T(X) Ports in M12 Auto MDI/MDIX 8 x M12 female connector (4-pin D-coding)
10/100/1000Base-T(X) ports in M12 2 x M12 female connector (8-pin A-coding)
RS-232 Serial Console Port RS-232 in M12 female connector (A-coding). Baud rate setting: 9600bps, 8, N, 1
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1D-2004 for RSTP:2004 (Rapid Spanning Tree Protocol 2004)
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3af PoE specification (up to 15.4 Watts per port for P.S.E.)

MAC Table 8192 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switch Properties

Switching latency: 7 us
Switching bandwidth: 7.2Gbps
Max. Number of Available VLANs: 4096
IGMP multicast groups: 1024
Port rate limiting: User Define

Security Featues

Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q) to segregate and secure network traffic
Supports Q-in-Q VLAN for performance & security to expand the VLAN space
Radius centralized password management
SNMP v1/v2c/v3 encrypted authentication and access security
Https / SSH enhance network security

Software Features

STP/RSTP:2004/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping for multicast filtering
Port configuration, status, statistics, monitoring, security
SNTP for synchronizing of clocks over network
Support PTP Client (Precision Time Protocol) clock synchronization
DHCP Server / Client support
Port Trunk support
MVR (Multicast VLAN Registration) support

Network Redundancy

O-Ring
O-Chain
*note MRP
STP
RSTP:2004
MSTP

Warning / Monitoring System

Relay output for fault event alarming
Syslog server / client to record and view events
Include SMTP for event warning notification via email
Event selection support

LED Indicators
Power Indicator Green: Power LED x 2
R.M. Indicator Green: Indicate system operated in O-Ring Master mode
O-Ring Indicator Green: Indicate system operated in O-Ring mode
Fault Indicator Amber: Indicate unexpected event occurred
10/100Base-T(X) M12 PoE Port Indicator

Top Green for port Link/Act.
Middle Green for PoE indicator.
Bottom Amber for Collision/Duplex indicator.

10/100Base-T(X) M12 Port Indicator Green for Link/Act. Amber for duplex/collision indicator
10/100/1000Base-T(X) M12 Port Indicator Green for Link/Act. Amber for 100Mbps indicator
Fault Contact
Relay Relay output to carry capacity of 3A at 24VDC on M12 female connector (5-pin A-coding)
Power
Redundant Input Power Dual DC inputs. 24 (12~57VDC) VDC on 5-pin M23 female connector
Power Consumption (Typ.) 14.88 Watts (power consumption of P.S.E. is not included)
PoE Output Power 60 Watts (12~24VDC) / 120 Watts (24~57VDC)
Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristics
Enclosure IP-30
Dimensions (W x D x H) 260 (W) x 91.3 (D) x216 (H) mm
Weight (g) 2140 g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
EMS IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty 5 years
