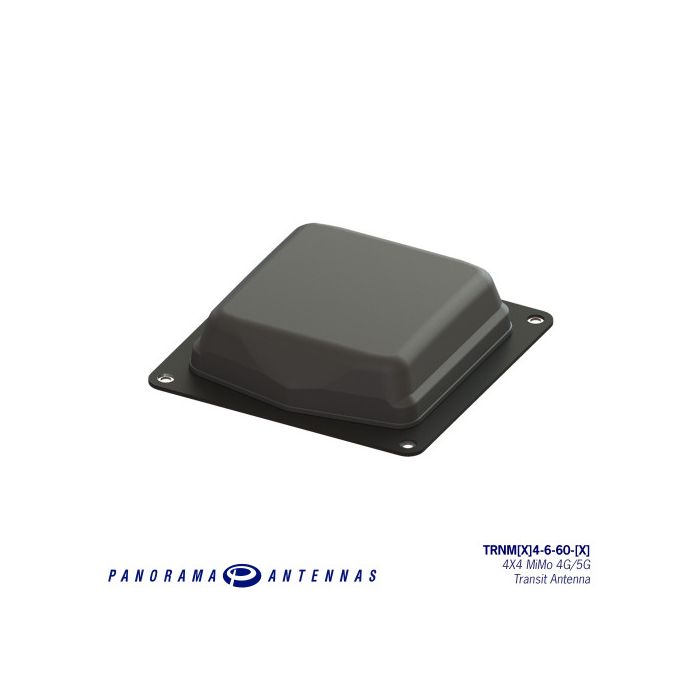

TRNM[X]4-6-60-[X] 4X4 MiMo 4G/5G Transport Antenna
4x4 MiMo 617MHz to 6000MHz 4G/5G EN50155, EN45545-2 (HL 1-3), EN50124-1, IP69K
Key Features:
- Low Profile Transit Antenna
- 4x4 MiMo 617-960/1427-6000MHz
- Up to 4x4 MiMo WiFi 6e
- Covers global 4G/5G frequencies
- Optional active GPS/GNSS
The TRNM[X]4-6-60-[X] MiMo antenna series is specifically designed for use on trains & trams (underground or overground) and buses
Providing a 4x4 MiMo antenna function for 617MHz to 6000MHz, the TRNM[X]4 range covers global 4G/5G frequencies so is versatile and future-proof. The TRNM[X]4 series can be supplied in versions with up to 4x4 MiMo WiFi 6e and active GPS/GNSS function Housed in a high impact, flame retardant Ultem housing, the TRNM[X]4 series is fully weatherproof ensuring that the antenna’s performance is never compromised. The TRNM[X]4 antenna meets stringent industry standards including EN50155, EN45545-2 (HL 1-3), and EN50124-1 and is ingress protected to IP69k when properly installed.
Product Features
- Low Profile Transit Antenna
- 4x4 MiMo 617-960/1427-6000MHz
- Up to 4x4 MiMo WiFi 6e
- Covers global 4G/5G frequencies
- Optional active GPS/GNSS
Benefits
- Meets Railway Standards EN50155, EN45545-2 and EN50124-1
- IP69k
- Housed in a high impact
- Flame retardant
- Weatherproofing
Application
- Trains
- Trams
- Underground or Overground
- Buses
| Electrical Data | |
| Peak Gain (dBi) | 11dBi |
| Max Input Power (W) | 60 |
| Pattern | Omni-directional |
| Global Positioning Data | |
| Frequency Range (MHz) | 4x 617-960 / 1427-6000 MHz |
| LNA Gain (dB) | 26dB |
| Mechanical Data | |
| Operating Temperature | -40° / +85°C ( -40° / +185°F ) |
| Approvals Data | |
| IP Rating | IP69K |
