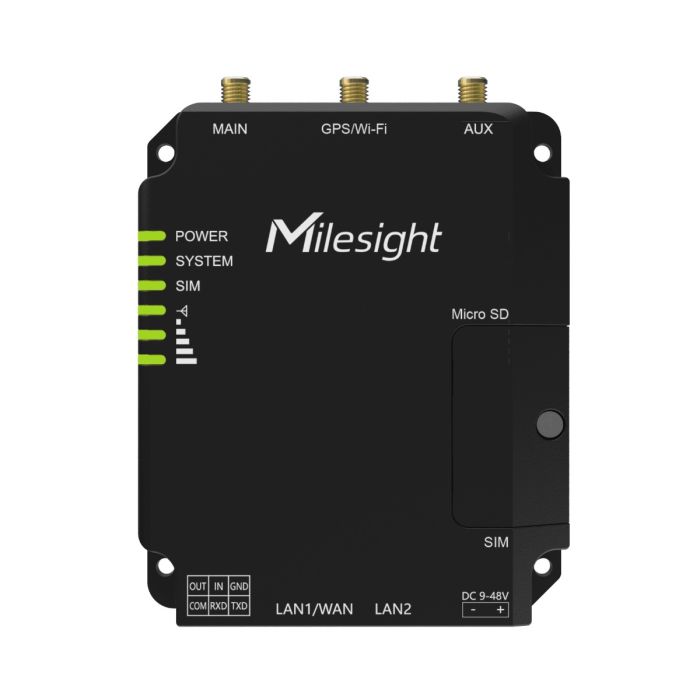

UR32 3G/4G Industrial Cellular Router Dual SIM
Please enquire for PoE option.
UR32 is a cost-effective industrial cellular router with embedded intelligent software features that are designed for M2M/IoT applications. Optional Wifi and POE (PSE)
Accessories included - AC PSU, Cellular and Wifi Paddle antennas, Din rail clip
UR32 is a cost-effective industrial cellular router with embedded intelligent features that are designed for multifarious M2M/IoT applications. Global WCDMA and 4G LTE carrier supported to make this drop-in connectivity a great help for operators in maximizing uptime. Integrating embedded cellular modem and dual SIM function, the UR32 provides 3G/4G cellular network with 150 Mbps download and 50 Mbps uplink, it also has 2 fast Ethernet ports and supports WiFi that compliance with 802.11b/g/n standard. All these capabilities deliver users uninterrupted internet access. Easy deployment and comprehensive remote device management make UR32 versatile in most IoT/M2M applications.
Benefits:
- NXP industrial-grade processor
- Global 4G LTE CAT4/3G network with dual
- SIM cards for backup between multiple carrier networks
- Embedded Python SDK for secondary development
- Flexible modular design provides users with different connection modules like Ethernet, I/O, serial port, Wi-Fi, GPS for connecting diverse field assets
- Rugged enclosure, optimized for DIN rail or shelf mounting
- 3-year warranty included
Security & Reliability:
- Automated failover/failback between Ethernet, Cellular (dual SIM) and Wi-Fi - Secure transmission with VPN tunnels like IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
- Embeds hardware watchdog to automatically recover from various failures, ensure the highest level of availability
- Establishes a secured mechanism on centralized authentication and authorization of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority
Capabilities:
- Link remote devices in an environment where communication technologies are constantly changing
- Support 802.11 a/b/g/n, as AP or client mode, to establish a versatile wireless network or be the backup WAN link for 4G/3G
- Support rich protocols like SNMP, Modbus bridging, RIP, OSPF
- Support wide operating temperature ranging from -40°C to +70°C/-40℉ to +158℉
Easy Maintenance:
- DeviceHub provides easy setup, mass configuration, and centralized management of remote devices
- The user-friendly web interface design and more than one option of upgrade help administrator to manage the device as easy as pie
- WEB GUI and CLI enable the admin to achieve simple management and quick configuration among a large number of devices
- Efficiently manage the remote routers on the existing platform through the industrial standard SNMP
| WIRELESS | |
| Cellular Technology | Cat4 – 3G/4G |
| WiFi | 2.4 GHz (b/g/n) |
| GPS | Χ |
| Bluetooth | Χ |
| PORTS | |
| Ethernet Ports | 2 x 10/100 |
| LAN/WAN | 1x WAN + 1x LAN OR 2x LAN |
| WAN Failover | WAN + 2nd SIM |
| RS232 | ✓ |
| RS485 | Χ |
| Digital I/O | 1 x In, 1 x Out |
| Analog Input | Χ |
| USB | Χ |
| Mobile antenna | 2 x SMA |
| WiFi antenna | 1 x RP-SMA |
| GPS antenna | Χ |
| Voice Port (FXS) | Χ |
| PROCESSING | |
| CPU | 512 MHz |
| RAM | 128 MB |
| Flash Memory | 128 MB |
| SLOTS | |
| SIM card slots | 2x 2FF |
| Micro SD Slot | ✓ |
| BAND SUPPORT | |
| LTE | B1/B2/B3/B4/B5/B7/B8/B28/B40 (700/850/900/1700/1800/1900/2100/2300/2600MHz) |
| WCDMA | B1/B2/B5/B8 (850/900/1900/2100MHz) |
