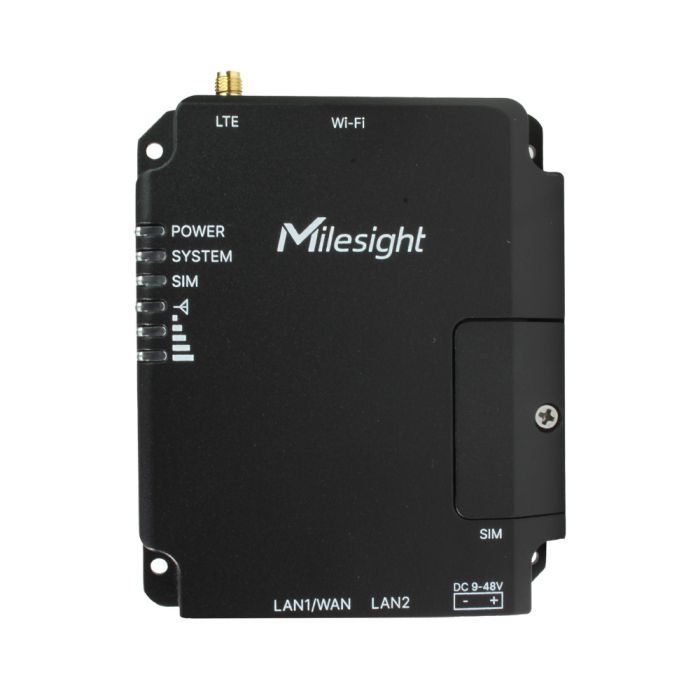

UR32L Lite 3G/4G Industrial Cellular Router Dual LAN
For partner & project pricing, please contact us.
POE OPTIONAL
Accessories included: AC PSU, cellular Paddle antennas, DIN rail clip
The UR32L is a low-cost industrial cellular router with embedded intelligence that is ideal for a wide range of M2M/IoT applications. This drop-in connectivity is a big help to operators in maximising uptime because it supports global WCDMA and 4G LTE carriers. Additionally, the UR32L has two fast Ethernet ports, giving users continuous access to the internet. UR32L offers reliable communications by integrating watchdog and multi-link failover detection. You can easily and effectively manage your network with the help of UR32L, which combines DeviceHub and MilesightVPN. The UR32L is adaptable in the majority of IoT/M2M applications thanks to its simple deployment and thorough remote device management.
Key Features:
- Reliable 3G/4G Network
- Global 4G LTE CAT4/3G network with multiple carrier networks
- Automated failover/failback between Ethernet and cellular (SIM card)
- Industrial-Grade Design
- NXP industrial-grade processor
- Rugged enclosure with IP30 protection for harsh environment
- DIN rail or shelf mounting
- Supportwide operating temperature ranging from-40°C to +70°C/-40℉ to +158℉
- Security & Reliability
- Secure transmission with VPN tunnels like IPsec/OpenVPN/GRE/L2TP/PPTP /DMVPN
- Embeds hardware watchdog to automatically recover from various failures, ensure the highest level of availability
- Supports access control lists, DMZ, DDoS Protection, Filters, SPI firewalls
- Establishes a secured mechanism for centralized authentication and authorization of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority
- Easy Maintenance
- DeviceHub provides easy setup, mass configuration, and centralized management of remote devices
- The user-friendly web interface design and more than one option of upgrade help the administrator to manage the device easily
- WEB GUIand CLI enable the admin to achieve simple management and quick configuration among a large number of devices
- Efficiently manage the remote routers on the existing platform through the industrial standard SNMP
|
Hardware System |
CPU |
ARM Cortex-A7, 528 MHz |
|
Memory |
128 MB DDR3 RAM and 128MB Flash |
|
|
Cellular Interface |
Antenna Connector |
1 × 50 Ω SMA Connectors (Center PIN: SMA Female) |
|
SIM Slots |
1 (Mini SIM-2FF) |
|
|
Ethernet Interface |
Numbers |
1 × WAN + 1 × LAN or 2 × LAN |
|
Property |
1(Mini SIM-2FF) |
|
|
Mode |
Full or half-duplex (Auto-Sensing) |
|
|
PoE |
2 × 802.3 af/at PoE PSE on LAN Ports (Optional) |
|
|
Software |
Network Protocols |
IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH, etc. |
|
VPN |
DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE |
|
|
Security |
Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough |
|
|
Management |
Web, CLI, SMS, On-demand dial-up, SNMP v1/v2/v3, DeviceHub |
|
|
AAA |
Radius, Tacacs+, LDAP, Local Authentication |
|
|
Multilevel Authority |
Multiple Levels of User Authority |
|
|
Reliability |
VRRP, WAN Failover |
|
|
Power Supply |
Power Connector |
2-pin 5.08 mm Terminal Block |
|
Input Voltage |
9-48 VDC, with Surge-Protection and Reverse Polarity Protection |
|
|
Physical Characteristics |
Ingress Protection |
IP30 |
|
Housing |
Metal |
|
|
Dimension |
108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) |
|
|
Installation |
Desktop, Wall or DIN Rail Mounting |
|
|
Environmental |
Operating Temperature |
-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Ab |
|
Storage Temperature |
-40°C to +85°C (-40℉ to +185℉) |
|
|
Ethernet Isolation |
1.5 kV RMS |
|
|
Relative Humidity |
0% to 95% (non-condensing) at 25°C/77℉ |
UR32L-L04AU
Low Cost 3G/4G, 1 x SIM, 2 x 10/100 LAN
UR32L-L04AU-P
Low Cost 3G/4G, 1 x SIM, 2 x 10/100 LAN, POE
