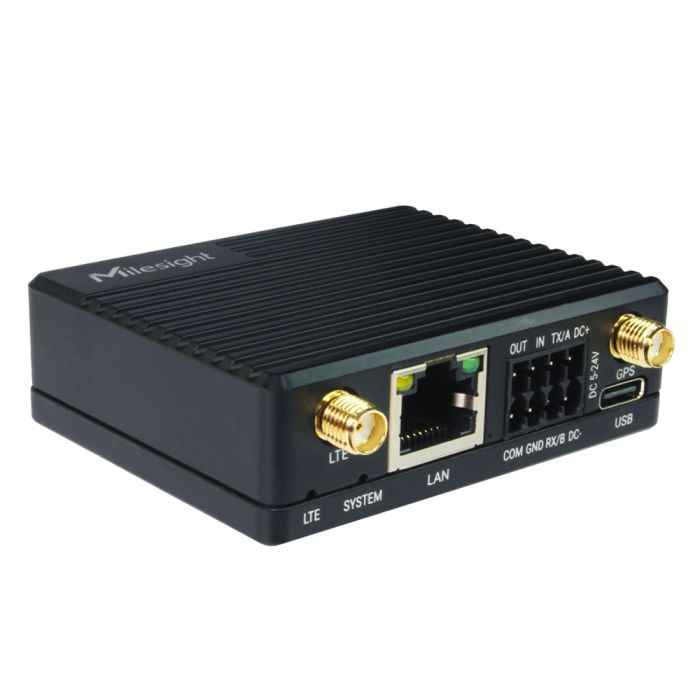

UR41 4G Mini Industrial Cellular Router
Low Power Mini Industrial Router
Key Features:
- Compact size for suiting small embedded scenarios
- Global 4G LTE CAT4/3G network with multiple carrier networks
- Easy to connect with diverse wired devices through DI/DO/RS232/RS485 interfaces
- Power-saving design for both idle mode and standby mode providing users with an energy-saving option
- NXP industrial-grade processor
- Rugged enclosure with IP30 protection
- Desk or wall mounting
- Wide operating temperature range from -40°C to 60°C
The Milesight mini industrial router UR41 supports 4G connections, and also satisfies multi-type local data access requirements through rich industrial interfaces, including DI, DO, RS232 or RS485. The UR41 makes it easy to build a reliable, secure, and maintainable solution through its built-in watchdog and secure VPN tunnels, offering stable data transmission and high-speed mobile connectivity. With a compact size and industry-grade design, the UR41 is more flexible in a variety of installation and deployment scenarios.
The UR41 adopts a power-saving design with both idle mode and standby mode for providing users with an energy-saving option. The UR41 can also be managed and monitored remotely by Milesights DeviceHub, which can be applied in many different scenarios including vending machines, automated robots, industrial equipment, and other IoT applications with optimal cost and performance.
Key Features:
- Compact size for suiting small embedded scenarios
- Global 4G LTE CAT4/3G network with multiple carrier networks
- Easy to connect with diverse wired devices through DI/DO/RS232/RS485 interfaces
- Power-saving design for both idle mode and standby mode providing users with an energy-saving option
- NXP industrial-grade processor
- Rugged enclosure with IP30 protection
- Desk or wall mounting
- Wide operating temperature range from -40°C to 60°C
| Hardware System | CPU | ARM Cortex-A7, 528 MHz |
| Memory | 128 MB DDR3 RAM and 128 MB Flash | |
| Cellular Interface | Network | 4G LTE (CAT 4)/WCDMA/GSM |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) | |
| SIM Slot | 1（Nano SIM-4FF） | |
| Ethernet Interface | Numbers | 1 × 10/100 Mbps LAN Port |
| Mode | Full or Half Duplex (Auto-Sensing) | |
| GNSS | Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Technology | GPS/GLONASS/Beidou/Galileo/QZSS | |
| Serial Interface | Number | 1 × RS232 or 1 x RS485 (Software Switchable) |
| Connector | 3.5mm Terminal Block | |
| Terminal Resistor | 1 × 120 Ω Resister Switch (for RS485) | |
| Baud Rate | 300bps to 230400bps | |
| DI/DO | Numbers | 1 × DI (dry contact) + 1 × DO (wet contact), Galvanic Isolation |
| Connector | 3.5mm Terminal Block | |
| Maximum V/A | 0.3A@30VDC (DO) | |
| Others | Reset Button | 1 × RESET |
| USB | 1 × USB 2.0 (Type-C) for Power Supply, Network Supply and Debug | |
| LED Indicators | 1 × SYSTEM，1 × SIM | |
| Built-in | Watchdog, Timer | |
| Software | Network Protocols | IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, SSH, etc. |
| VPN | DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE | |
| Security | SPI Firewalls, Access Control (ACL), DMZ, Port Mapping, MAC Binding, | |
| DoS&DDoS Protection, Filtering(IP&Domain) | ||
| Management | Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub, | |
| MilesightVPN | ||
| AAA | Radius, Tacacs+, LDAP, Local Authentication | |
| Multilevel Authority | Multiple Levels of User Authority | |
| Serial Port | Transparent(TCP Client/Server, UDP), Modbus Master/Slave, Modbus Gateway (Modbus RTU to Modbus TCP) | |
| Power Supply and Consumption | Power Connector | 2-pin 3.5 mm Terminal Block |
| Power Input | 1. 5-24 VDC, with Surge-Protection and Reverse Polarity Protection | |
| 2. 5V/1A by USB Type-C Port | ||
| Power Consumption | Idle: 78mA@12V | |
| Data link: 226mA (peak)@12V | ||
| Standby mode: 6.3 mA@12V | ||
| Physical Characteristics | Ingress Protection | IP30 |
| Housing & Color | Metal, Black | |
| Weight | 103g | |
| Dimension | 70 x 55 x 22 mm (2.76 x 2.17 x 0.87 in) | |
| Installation | Desktop, Wall Mounting | |
| Environmental | Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) | |
| Ethernet Isolation | 1.5 kV RMS | |
| Relative Humidity | 0% to 95% (Non-condensing) |
