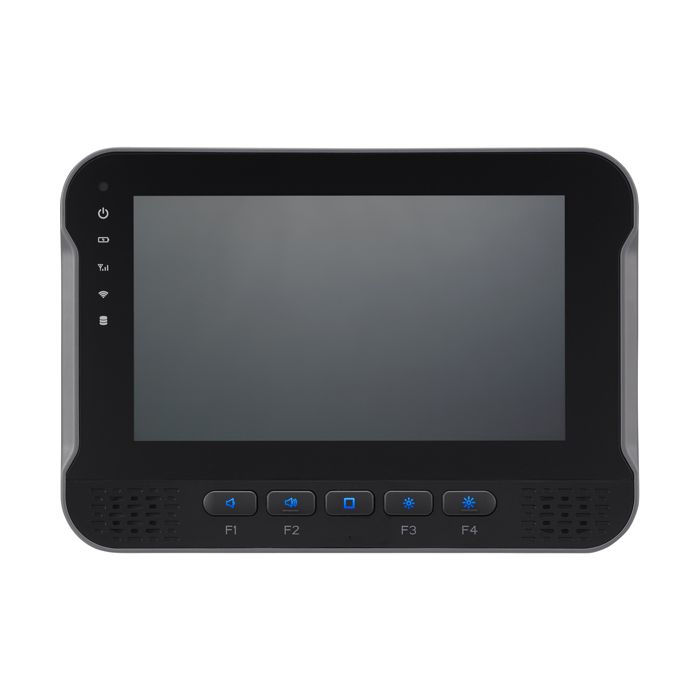

VMC2020 8" Rugged Vehicle Mount Computer

In stock
SKU
VMC2020-PC1
Brand: Nexcom

8" Rugged Vehicle Mount Computer with Intel Atom® E3950 processor, Touch Screen and IP65

Enquire Now
Enquire about this product:

VMC 2020, 8-inch all in one vehicle mount computer, suitable for the warehouses, port, logistic and material handling markets. VMC 2020 is able to support analog camera x 4 (optional); back-up battery; LCD panel: 1,000nits typ. sunlight-readable; and a wide-range power input (9V~60V).

  • 8" TFT LCD monitor with projected capacitive touch screen
  • IPS LCD with wide viewing angle and resolution 1280 x 720
  • Touch panel cover thickness 3mm for IK08 protection
  • Sunlight readable capability: 1,000nits LCD brightness
  • CVBS input for analog camera x 4 (optional)
  • Isolated CANBus 2.0 x 1
  • Back-up battery for approx.15 min of operation (optional)
  • Wide range DC input from 9V~60V DC in
  • Complete IP65 waterproof
  • Touchscreen is operable with various gloves (even with water spillage)
LCD Panel 8-inch TFT LCD panel with LED backlight1280 x 720 pixels (HD)Brightness: 1000 cd/m² (typical)Viewing angle: 170° (H)/170°(V)Contrast ratio: 1000:1 (typical)
Touch Screen Projected capacitiveAnti-glare coating surfaceTransmission rate: 80 ± 3%
CPU Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core
Memory 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB
Storage 1 x eMMC 64GB (BOM optional 128GB)1 x mSATA (occupied mini-PCIe slot)
Expansion 1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0)1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0/SATA 3.0)1 x M.2 3042/3050/3052 Key B socket (USB2.0, USB 3.0/PCIe 2.0 (BOM optional)) for LTE/5G NR module with 2 x external Nano-SIM slot
GNSS and Onboard Sensor 1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/BeidouOptional M8U modules with dead reckoning availableG Sensor (3-axis, 10-bit resolution)
LAN 1-port LAN, 10/100/1000 Mbps Intel® I210-IT GbE
Security TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional)
I/O Interface-Front Volume control keys (+/-) with LEDBrightness control keys (+/-) with LEDF1~F4 programmable function keys with LED1 x Shift key with LED1 x Light sensor5 x LED indicators (power, battery, WWAN, WLAN, storage)2 x Built-in 2W speakers1 x Built-in Mic
I/O Interface-Lateral Left Side
- 1 x System reset button w/ cover
- 2 x Nano SIM slot w/ cover
Right Side
- 1 x Power button
- 1 x USB 3.0 type A connector w/ cover
- 1 x Mic-in, 1 x Line-out w/ cover
I/O Interface-Rear 1 x Full RS232 (COM, w/ 5VDC, 12VDC)1 x Power connector, M12 A-coded 5-pin1 x 10/100/1000 Mbps LAN, M12 A-coded1 x M12 A-coded 8pin for 2 x USB 2.01 x M12 (MULTI PORT1, A-coded 8-pin)
- 2 x GPI
- 2 x GPO
- 1 x Isolated CANBus 2.0B
1 x M12 (MULTI PORT2, A-coded 12-pin)
- 1 x RS232 (Tx, Rx)
- 1 x RS232 (Tx, Rx)/RS422/RS485
- PWM (speed)+direction+GND, optional 4 x composite video input/ CAN-06
2 x SMA connector for WWAN3 x SMA connector for WLAN1 x SMA connector for Bluetooth1 x SMA connector for GNSS
Mechanical Cooling system: fanlessEnclosure: plasticIK Rating: IK08 (housing and touch screen)Mounting: VESA 75Ingress protection: complete IP65Dimension: 250 x 179 x 67.5 mmWeight: 2.6 kg
Power Management 9V~60V DC inBack-up battery for approx. 15 min of operation (optional)Reverse protection/over voltage protection/under voltage protectionIgnition on/off control & programmable on/off delay timingWake up by LAN, SMS, RTC and ignition
RFID Module (optional, occupied 1 x USB 2.0) 13.56-MHz RFID/contactless standard protocolsCompatibles with all major global secured baseband ISO standards including ISO14443 Type A, MIFARE classic cards, and Smartlabel ISO15693
Environment Operating temperatures: Ambient with air -30°C to 60°C, ambient with air and without batteryStorage temperatures: -40°C to 80°CRelative humidity: 10% to 90% (non-condensing)Vibration (random)
- 2g@5~500 Hz (in operation)
Vibration
- Operating: MIL-STD-810G, 514.6 Procedure 1,Category 4
- Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24
Shock
- Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and
semi-trailers = 40g
- Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground
equipment = 75g
Operating System Windows 10Linux (Kernel 4.x)
Standards/Certifications CE/FCC class B/E13/IK08
