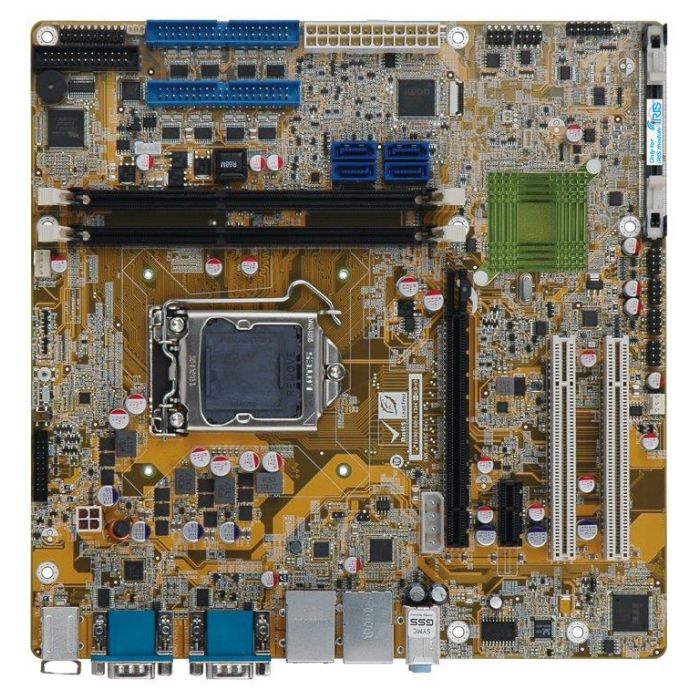

IMB-H810-i2 micro-ATX Motherboard
microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81
microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81
· LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
· Dual-channel DDR3 1333/1600 MHz support up to 16 GB
· Intel® HD Graphics technology integrates high-performance graphics and media processing
· Supports legacy PCI 32-bit 33/66 MHz
· Ten COM ports, USB 3.0 and SATA supported
· TPM V1.2 hardware security function supported by TPM module
· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
· Support IPMI 2.0 via iRIS-2400 module
· IEI jumper-less function
| Spec Item | Description |
|---|---|
| CPU Cooler | |
| CPU Cooler | CF-1156A-RS-R11 CF-1156E-R11 |
| Display | |
| Display | VGA1 (up to 1920x1200 @ 60 Hz) VGA2 (up to 1920x1200 @ 60 Hz) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz) |
| Environment | |
| Humidity | 10% ~ 95%, non-condensing |
| Operating Temperature | -20°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots | 1 x PCIe x16 slot (Gen 3) 1 x PCIe x1 slot 2 x PCI slot |
| I/O Interface | |
| Audio | Line-in, Line-out (with 3.5W +3.5W audio amplifier), Mic |
| Ethernet | LAN1: Intel® I217LM LAN2: Intel® I210-AT PCIe controller with NCSI support |
| I/O Interface | |
| I/O Interface | 2 x USB 3.0 |
| 2 x USB 2.0 | |
| 1 x LPT | |
| 8 x Internal USB 2.0 | |
| 8 x Internal RS-232 | |
| 2 x RS-232 | |
| Option | |
| iRIS | 1 x iRIS-2400 slot |
| Power | |
| Power consumption | [email protected], [email protected], [email protected], [email protected], [email protected] (Intel® Core™ i7-4770K 3.90 GHz CPU with 8GB (2 x 4GB) 1333MHz DDR3 memory) |
| System | |
| Chipset | Intel® H81 |
| CPU | Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported |
| CPU Socket | LGA1150 |
| Memory Max. | Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs support up to 16GB |
| Storage | 2 x SATA 3Gb/s 2 x SATA 6Gb/s |
| Watchdog Timer | |
| Watchdog Timer | Software programmable, support 1~255 sec system reset |
